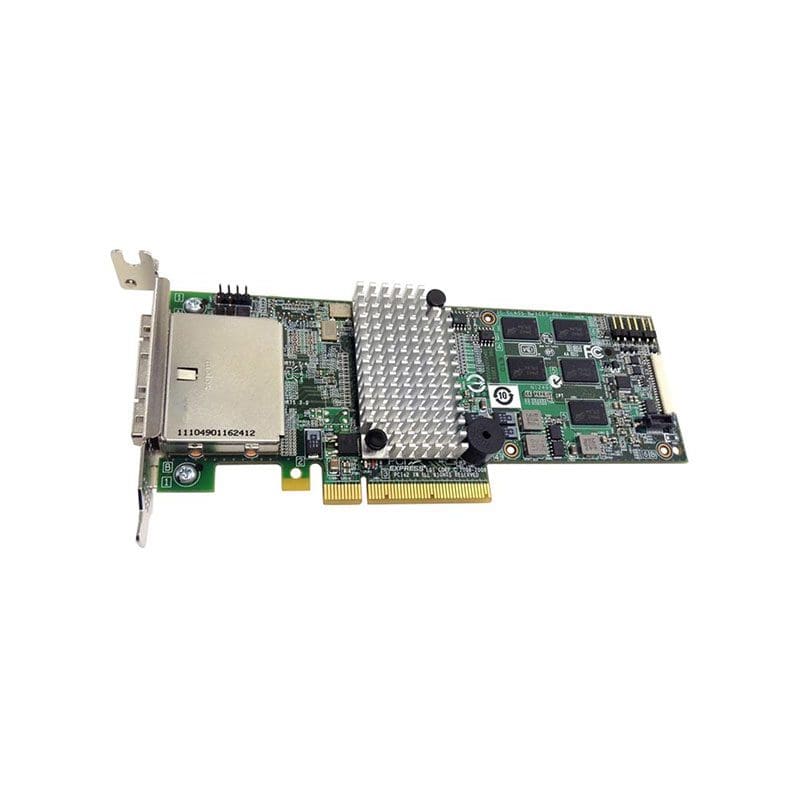

LSI00205 LSI Logic MegaRAID SATA 6Gbps PCI Express Controller Card

LSI00205 Technical Specifications

LSI Logic MegaRAID SAS 9280-8e 512MB Cache 8-port SAS 6Gbps / SATA 6Gbps PCI Express 2.0 x8 MD2 Low Profile RAID 0/1/5/10/50/60 Controller Card

Manufacturer Part Number LSI00205
Brand Name LSI Logic
Product Type SAS Controller
Technical Information
Host Interface PCI Express x8
RAID Supported Yes
RAID Levels 0
1
5
6
10
50
60
Interfaces/Ports
Total Number of SAS Ports 2
Number of SAS Ports (Internal) 2
Number of SAS Ports (External) 2
SAS Connector Details 2 SFF-8088
Physical Characteristics
Height 2.5″
Width 6.6″
Form Factor Plug-in Card
Miscellaneous
Platform Supported PC
