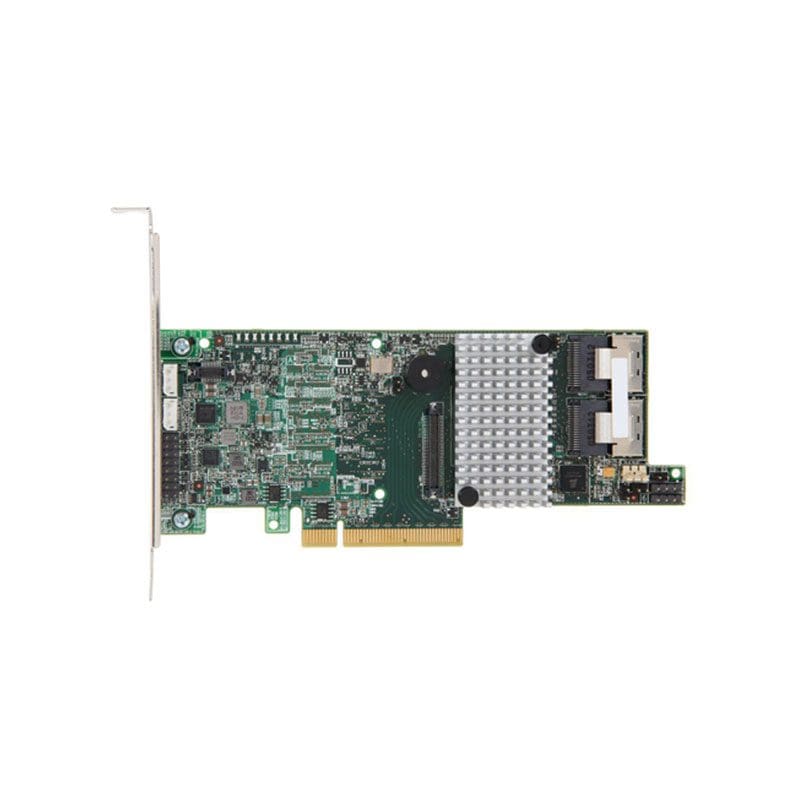

LSI00330 LSI Logic SAS/SATA 6Gbps PCI Express RAID Controller Card

LSI00330 Technical Specifications

LSI Logic MegaRAID SAS 9271-8i 1GB Cache 8-Port SAS 6Gbps / SATA 6Gbps PCI Express 3.0 x8 MD2 Low Profile RAID 0/1/5/6/10/50/60 Controller Card

Manufacturer Part Number LSI00330
Brand Name LSI Logic
Product Type SAS Controller
Technical Information
Host Interface PCI Express 3.0 x8
Controller Type Serial ATA/600
RAID Supported Yes
RAID Levels 0
1
10
50
60
5
6
Data Backup Type Battery Backup
Interfaces/Ports
Total Number of SAS Ports 2
Number of SAS Ports (Internal) 2
SAS Connector Details 2 SFF-8087
Physical Characteristics
Height 2.5″
Width 6.6″
Form Factor Plug-in Card
Miscellaneous
Platform Supported PC
SPARC
