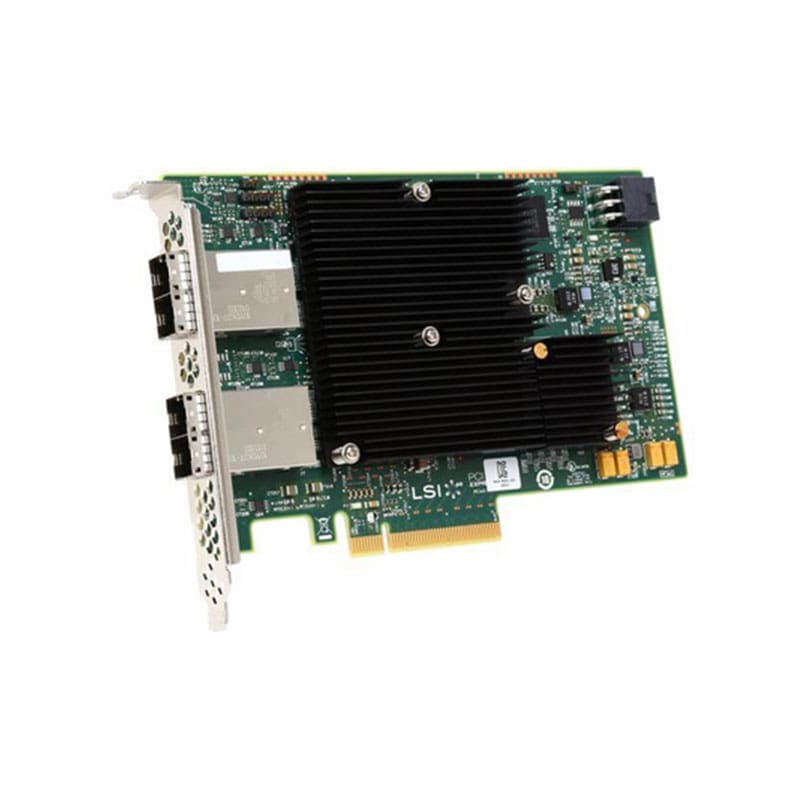

LSI00342 Broadcom 12GB 16 Port Ext PCI-E 3.0 SAS SATA
LSI00342 Overview
High Performance: The host bus adapter offers 12Gb/s SAS and SATA data transfer rates, which makes it ideal for high-performance applications such as database, data warehousing, and video streaming.
Scalability: The adapter comes with 16 external ports, allowing for easy scalability and flexibility when adding storage devices to your system.
RAID Support: The adapter supports RAID levels 0, 1, 5, 6, 10, 50 and 60, providing enhanced data protection and reliability.
Advanced Management Features: The adapter supports advanced management features such as firmware updates, configuration backup and restore, and diagnostic tools, which simplifies administration and improves overall system reliability.
$610
LSI00342 Technical Specifications
Broadcom 12GB 16 Port Ext PCI-E 3.0 SAS SATA Host Bus Adapter
Brand: Broadcom
MPN : LSI00342
Type: Controller
Sub-Type : SAS-SATA
Interface Type: PCIe 3.0 x8
Device Type: Host bus adapter
Bus Type: SAS 12Gb/s / SATA 6Gb/s
Data Transfer Rate: 12 Gbps
Number of Ports: 16 external ports
Supported Devices: SAS/SATA drives
RAID Level Supported: RAID 0, RAID 1, RAID 1E, RAID 10, RAID 5, RAID 50, RAID 6, RAID 60
Supported Operating Systems: Microsoft Windows, Linux, VMware
Dimensions (WxDxH): 6.6 in x 6.0 in
