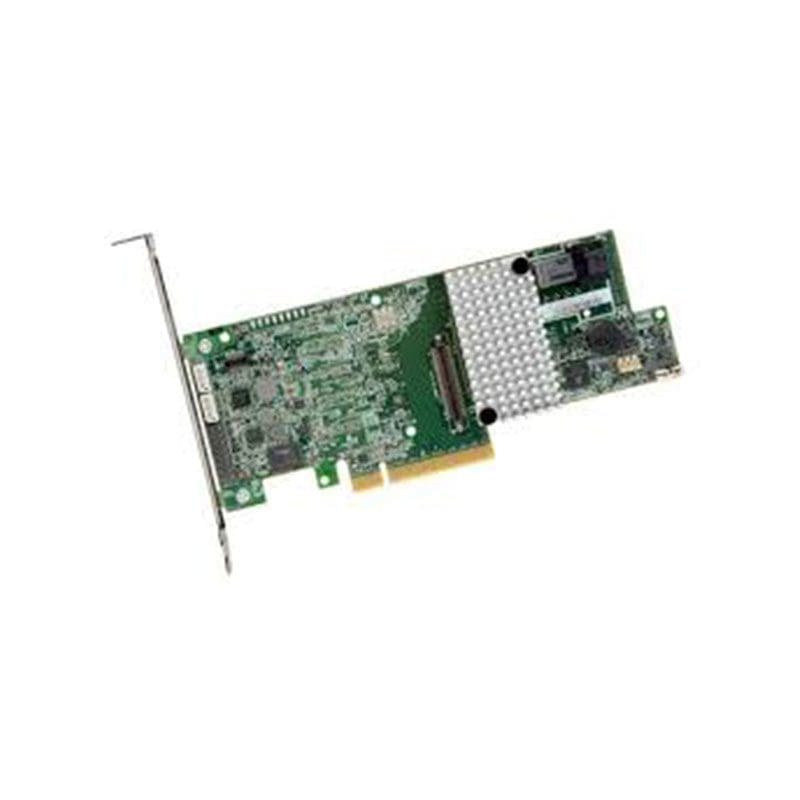

LSI00415 LSI Logic MegaRAID SAS 12Gbps PCI Express Controller Card
LSI00415 Overview
High-speed data transfer: The controller supports high-speed data transfer rates of up to 12GB/s SAS and 6GB/s SATA, providing fast and efficient data access.
RAID levels: The controller supports multiple RAID levels, including RAID 0, 1, 5, 6, and 10, providing flexibility and optimal data protection.
Management software: The controller includes Broadcom’s MegaRAID Storage Manager software, which allows for easy management of the RAID array and monitoring of system health.
$415
LSI00415 Technical Specifications
LSI Logic MegaRAID SAS 9361-4i 1GB Cache 4-Port SATA 6Gbps / SAS 12Gbps PCI Express 3.0 x8 MD2 Low Profile RAID 0/1/5/6/10/50/60 Controller Card
Manufacturer Part Number: LSI00415
Brand Name: LSI Logic
Product Type: SAS Controller
Technical Information
Host Interface: PCI Express 3.0 x8
Controller Type: 12Gb/s SAS
Serial ATA/600
RAID Supported: Yes
RAID Levels: 0, 5, 6, 10, 50, 60
Interfaces/Ports
Total Number of SAS Ports: 4
Number of SAS Ports (Internal): 1
SAS Connector Details: 1 SFF-8643
Physical: Characteristics
Height: 2.5″
Width: 6.6″
Form Factor: Plug-in Card
Miscellaneous
Platform Supported: PC, SPARC
