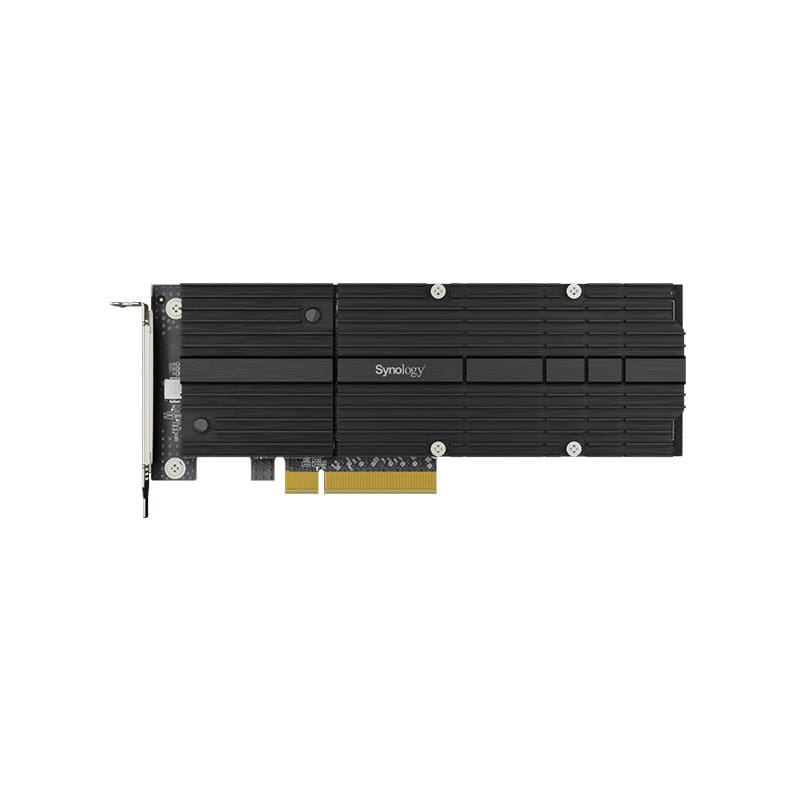

M2D20 Synology Interface Adapter M.2 NVMe Card PCIe 3.0 x8
M2D20 Overview
Synology is a M.2 NVMe SSD adapter card designed to supercharge your NAS I/O performance. The multi-queue capability of the NVMe SSD greatly benefits latency-sensitive applications, such as photo indexing, file search, and virtualization deployments.
$164
M2D20 Technical Specifications
Synology Interface Adapter M.2 NVMe Card PCIe 3.0 x8
Brand: Synology
Product Line: Synology
Manufacturer: Synology
Processor
Processor Type: No CPU
Storage
Controller Interface: M.2 NVMe Card
Expansion Slots
Expansion Bays: 2 x internal – M.2 2280/22110
Connectivity
Interface Required Connections: 1 x PCIe 3.0 x8
Power
Power Device Type: None
Technical Information
Form Factor (Storage Controller): Plug-in card
Host Bus Interface: PCIe 3.0 x8
Min Operating Temperature: 32 degree Fahrenheit
Operating Humidity: 5 – 95% RH
Supported Devices: Solid State Drive
Product Information
Max Storage Devices: 2
Product Type: Interface adapter
Included Items
Included Accessories: Low-profile bracket
Dimensions & Weight
Height: 2.8 inch
Width: 0.6 inch
Depth: 7.2 inch
Physical Characteristics
Color Category: Black
