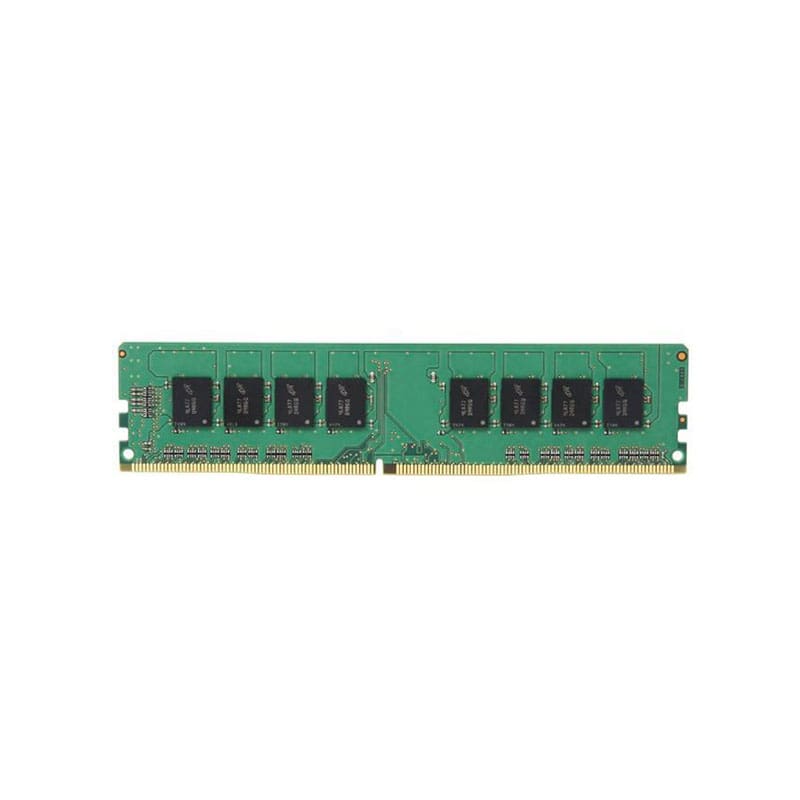

M378A1K43DB2-CTD Samsung 8GB UDIMM 288-Pin Memory Module

M378A1K43DB2-CTD Technical Specifications

Samsung 8GB PC4-21300 DDR4-2666MHz non-ECC Unbuffered CL19 288-Pin DIMM 1.2V Dual Rank Memory Module

Technical Information
Memory Technology: 13692
RAM Speed: 2666 MHz
Error Identifying: Non-ECC
Signal Type: 13849
Supported Device: 3581
Memory Capacity: 8 GB
Product Voltage: 1.2V
RAM Standard: DDR4-2666/PC4-21300
Column Access Strobe (CAS): CL19
Rank: Single Rank x8
Quantity of Pins: 288-pin
RAM Genre: 26683
Quantity of Modules: 1 x 8 GB
Rank: Rank 2
Cycle Time: 0.75ns
Weight: 0.1 lbs
Dimensions: 5.125 x 0.039 x 1.181 in
Standard: JEDEC
Type Height: 31,25mm
DRAM Organization: 1Gx8
Number of DRAM: 8
Construction Type of DRAM: FBGA(78ball)
