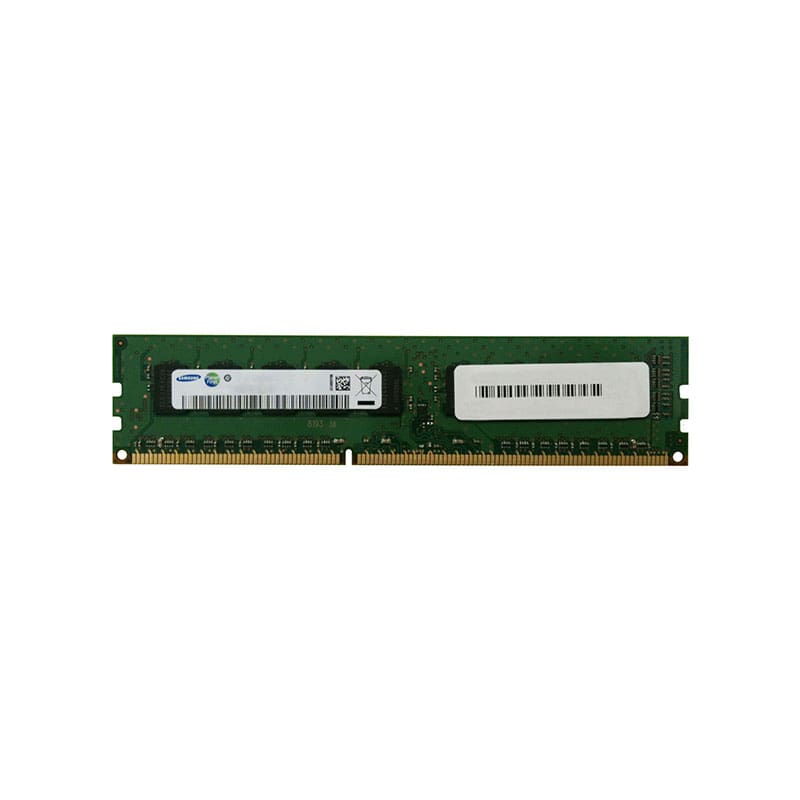

M391B5173BH0-YK0 Samsung 4GB UDIMM 240-Pin Memory Module

M391B5173BH0-YK0 Technical Specifications

Samsung 4GB PC3-12800 DDR3-1600MHz ECC Unbuffered CL11 240-Pin DIMM 1.35V Low Voltage Single Rank Memory Module

Technical Information:
Supported Device: Server
Memory Capacity: 4 GB
Memory Technology: DDR3 SDRAM
Product Voltage: 1.35V
RAM Speed: 1600 MHz
RAM Standard: DDR3-1600/PC3-12800
Error Identifying: ECC
Signal Type: Unbuffered
Column Access Strobe (CAS): CL11
Rank: Single Rank x8
Quantity of Pins: 240-pin
RAM Genre: UDIMM
Quantity of Modules: 1 x 4 GB
Cycle Time: 1.25ns
Cas: CL11
Rank: Rank 1
Voltage: 1.35
DRAM Organization: 512Mx8
Number of DRAM: 9
Construction Type of DRAM: FBGA(78ball)
Standard: JEDEC
Type Height: 31,25mm
Weight: 0.1 lb
