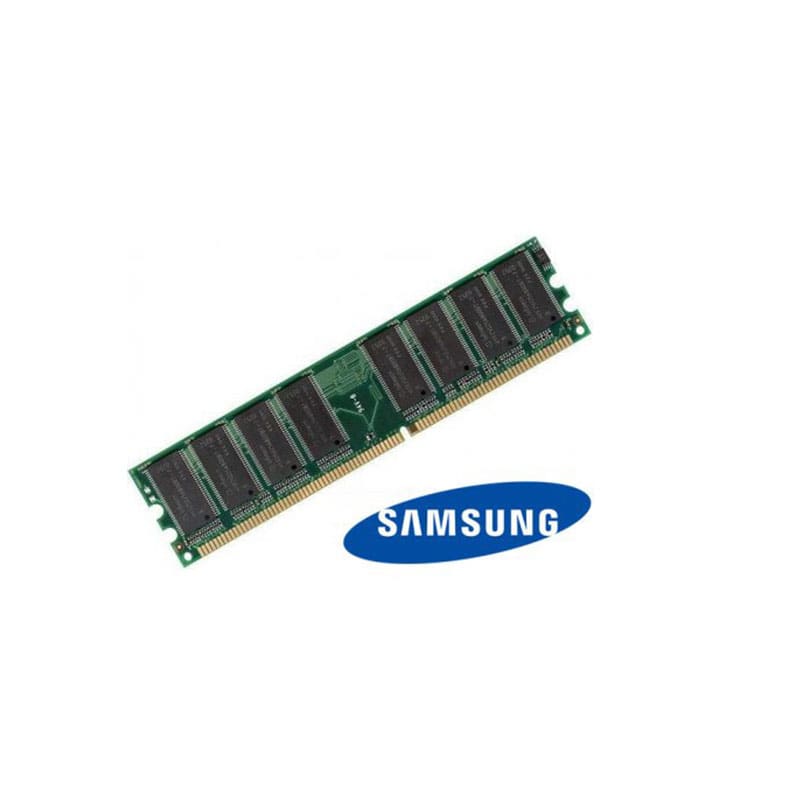

M393B5270DH0-YK0 Samsung 4GB RDIMM 240-Pin Memory Module

M393B5270DH0-YK0 Technical Specifications

Samsung 4GB PC3-12800 DDR3-1600MHz ECC Registered CL11 240-Pin DIMM 1.35V Low Voltage Single Rank Memory Module

Technical Information
Supported Device: 3586
Memory Capacity: 4 GB
Memory Technology: 13700
Product Voltage: 1.35V
RAM Speed: 1600 MHz
RAM Standard: DDR3-1600/PC3-12800
Error Identifying: ECC
Signal Type: 13848
Column Access Strobe (CAS): CL11
Rank: Single Rank x4
Quantity of Pins: 240-pin
RAM Genre: 13900
Quantity of Modules: 1 x 4 GB
Rank: Rank 1
Cycle Time: 1.25ns
Type Height: 30mm
Number of DRAM: 18
DRAM Organization: 512Mx4
Standard: JEDEC
