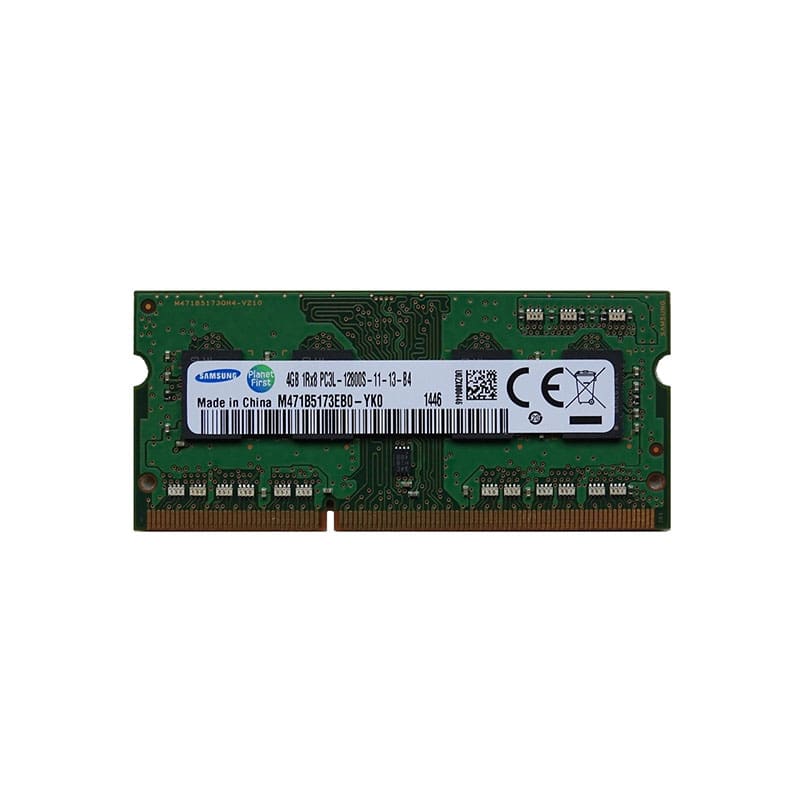

M471B5173EB0-YK0 Samsung 4GB DDR3-1600 SODIMM PC3-12800 NON-ECC

M471B5173EB0-YK0 Technical Specifications

Samsung SO-DIMM with manufacturer reference is a unbuffered SO-DIMM non-ECC DDR3L 1600MHz 204Pin with 4GB capacity (512Mx64).It is organized with 8 FBGA(78ball) 512Mx8 DRAM (Dynamic Random Access Memory).

Manufacturer: Samsung
Capacity: 4GB
Name: PC3L-12800
Short Form: 4GB (1Rx8)
Type: 204Pin
Construction Type: SO-DIMM
Model: SO-DIMM
Organization: 512Mx64
Description: DDR3L 1600MHz
Number of: Ranks1
Extension: unbuffered
Error Correction: non-ECC
DRAM Organization: 512Mx8
Number of DRAM: 8
Construction Type of DRAM: FBGA(78ball)
Standard: JEDEC
Type Height: 30mm
Voltage: 1,35V
Rank: 1R
Included Units: 1
Chip Count: 08c
