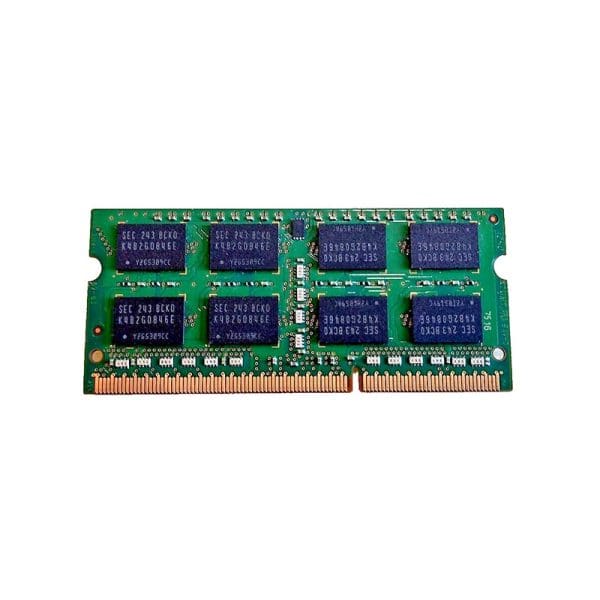

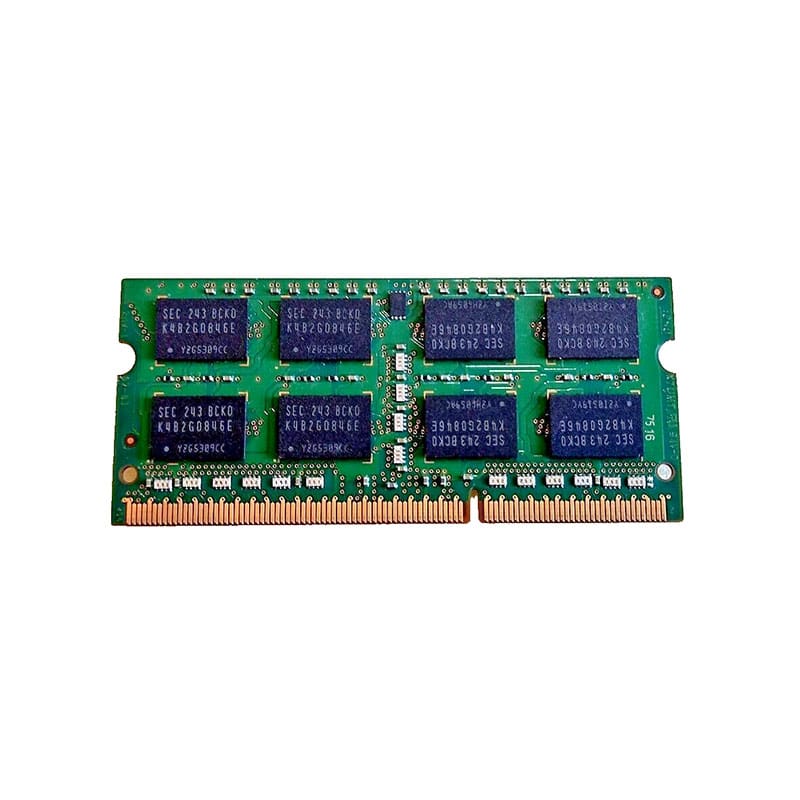

M471B5273EB0-CK0 Samsung 4GB SODIMM 204-Pin Memory Module

M471B5273EB0-CK0 Technical Specifications

Samsung 4GB PC3-12800 DDR3-1600MHz non-ECC Unbuffered CL11 204-Pin SoDimm Dual Rank Memory Module

Manufacturer: Samsung
Capacity: 4GB
Name: PC3-12800
Short Form: 4GB (2Rx8)
Type: 204Pin
Construction Type: SO-DIMM
Model: SO-DIMM
Organization: 512Mx64
Description: DDR3 1600MHz
Number of Ranks: 2
Extension: unbuffered
Error Correction: non-ECC
DRAM Organization: 256Mx8
Number of DRAM: 16
Construction Type of DRAM: FBGA(78ball)
Standard: JEDEC
Type Height: 30mm
Voltage: 1,5V
Rank: Rank 2
Cycle Time: 1.25ns
Weight: .1 lbs
Dimensions: 2.625 x 0.039 x 1.181 in
Form Factor: SODIMM
Rank: Dual Rank x8
