M7WD3 Technical Specifications

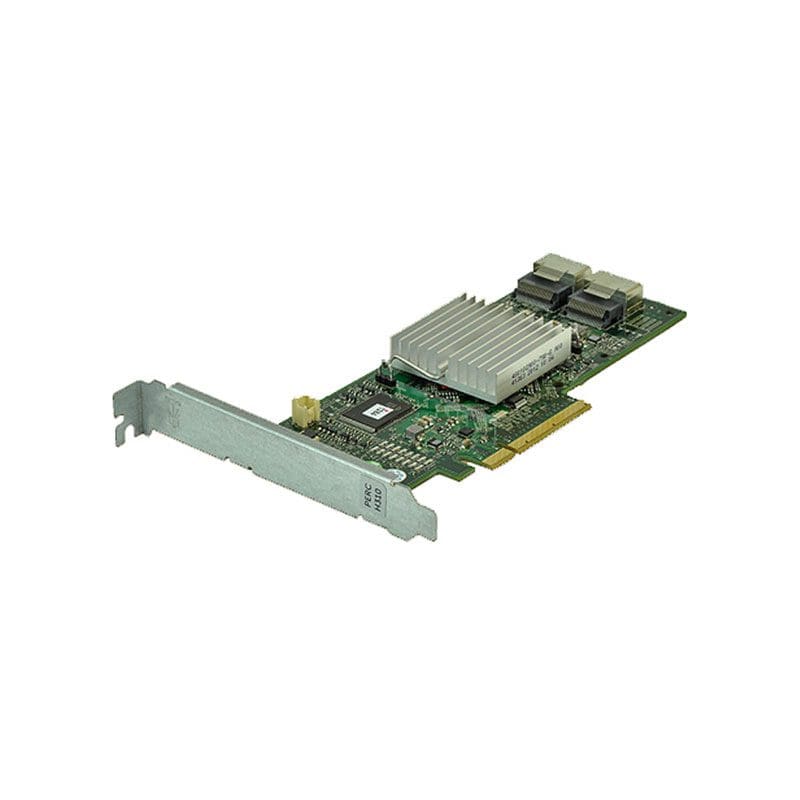

Dell Perc H310 Dual Port SAS 6Gbps PCI Express 2.0 RAID Controller Card
Category Dell Controller
Sub-Category RAID Controller
Generation PCI-Express
Part Number M7WD3
Products ID 725829
Device Type Storage Controller (RAID) – Plug-in Card
Interface Type PCI Express 2.0 x8
Data Transfer Rate Up to 6Gb/s per Port
Connectors Two x4 Internal mini-SAS SFF8087
Form Factor 4S/2U
Brackets Full-Height
RAID Controller RAID 0 1 5 10 50
SAS Controller LSI SAS 2008
PCI Voltage +12V +10%
PCI Card Type 3.3V Add-in Card
