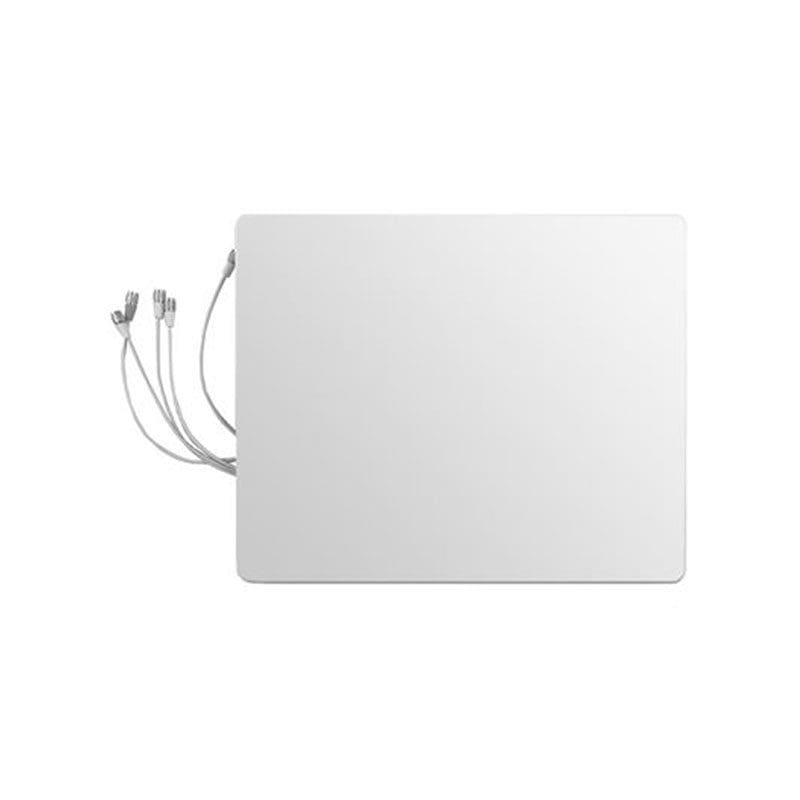

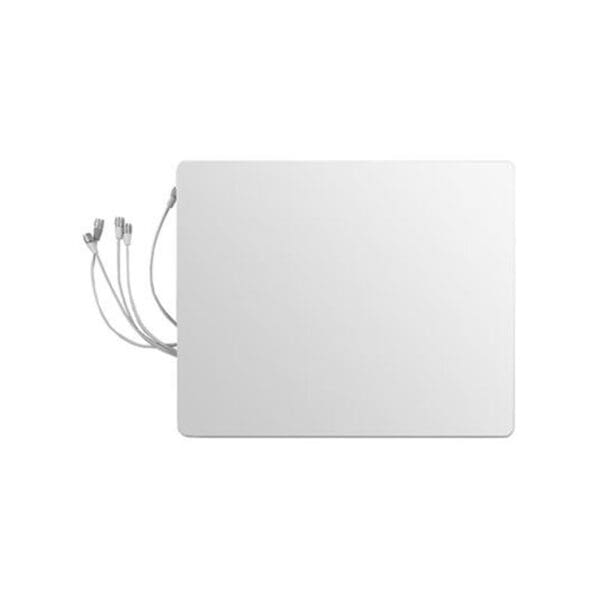

MA-ANT-3-F6 Cisco Meraki Narrow Patch Antenna
MA-ANT-3-F6 Overview
Antenna
11.2 dBi (for 2.4 GHz)
10.8 dBi (for 5 GHz)
directional
wall-mountable
pole mount
indoor
for Cisco Meraki MR53E
The Narrow Patch antenna is ideal for high ceiling (25 ft+) aesthetic consensus installations in high density applications and where APs are covering high density users in small zones. Some example use cases are in large lecture halls/stadiums as well as event venue centers. This antenna supports Meraki’s smart antenna capabilities.
$765
MA-ANT-3-F6 Technical Specifications
Cisco Meraki Narrow Patch Antenna
General
Category of Accessory :Antennas
Package Content :Antenna cable (1 m)
Miscellaneous
Compatible With :Cisco Meraki MR53
Antenna
Antenna Placing Mounting :Indoor, Pole mount, Wall-mountable
Directivity :Directional
Frequency Range :2.4 – 2.5 GHz, 5.15 – 5.875 GHz
Gain :10.8 dBi (for 5 GHz), 11.2 dBi (for 2.4 GHz)
Horizontal Beamwidth :30°
Vertical Beamwidth :30°
Environmental Parameters
Humidity Range Operating :5 – 93%
Max Operating Temperature :104 °F
Min Operating Temperature :32 °F
Header
Brand :Cisco Meraki
Manufacturer :CISCO DS HARDWARE DIRECT
Model :Narrow Patch
Packaged Quantity :1
Product Line :Cisco Meraki
Interface Provided
Connector Qty :6
Connector Type :RP-TNC Connector
Miscellaneous
Color Category :White
Mounting Kit :Included
Product Material :PC/ABS
Product Type :Antenna
