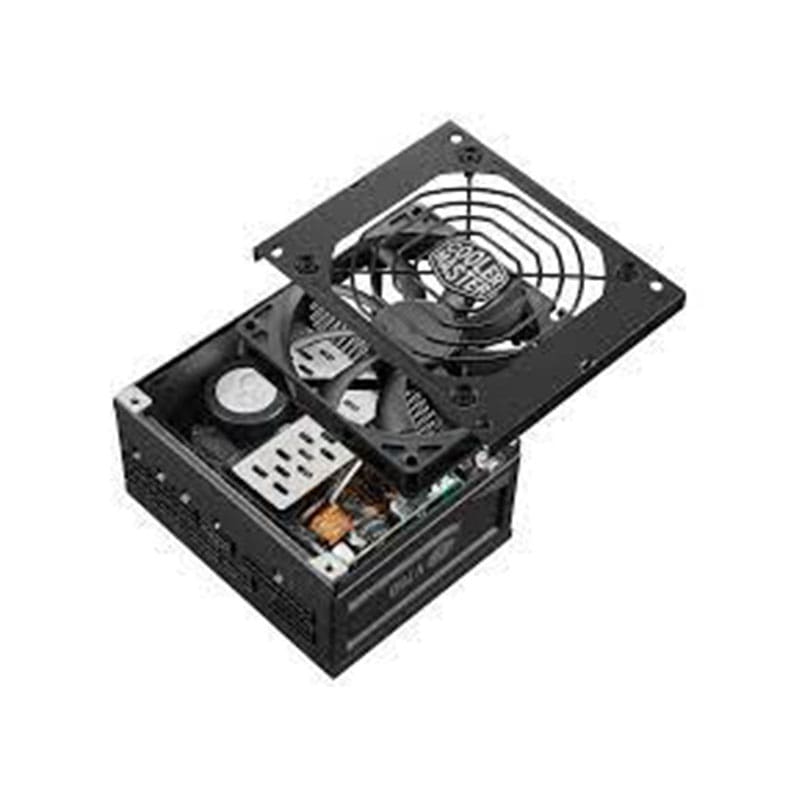

MPY-7501-SFHAGV-US Cooler Master V750 SFX Power Supply

MPY-7501-SFHAGV-US Technical Specifications

Cooler Master V750 SFX Gold 750W 80 PLUS Gold Modular SFX Power Supply

Manufacture: Cooler Master
Series: V750 SFX Gold
Model: MPY-7501-SFHAGV-US
Type: SFX 12V Ver. 3.42
Maximum Power: 750 W
Fans: 92mm FDB
PFC: Active
Main Connector: 20+4Pin
+12V Rails: Single
PCI-Express Connector: 4 x 6+2-Pin
SATA Power Connector: 8
Max PSU Length: 100 mm
Modular: Full Modular
Power Good Signal: 100-500ms
Hold-up Time: 16ms min.
Efficiency: 90% @ Typical Load
Energy-Efficient: 80 PLUS GOLD Certified
PSU Noise Level: Cybenetics Standard +
Protection: OVP / OPP / SCP / OCP / UVP / OTP / Surge and Inrush Protection
Input Voltage: 100 – 240 V
Input Frequency Range: 50/60 Hz
Input Current: 10 – 5A
Output: +3.3V@20V, +5V@20A, [email protected], [email protected], +5VSB@3A
MTBF: >100,000 Hours
