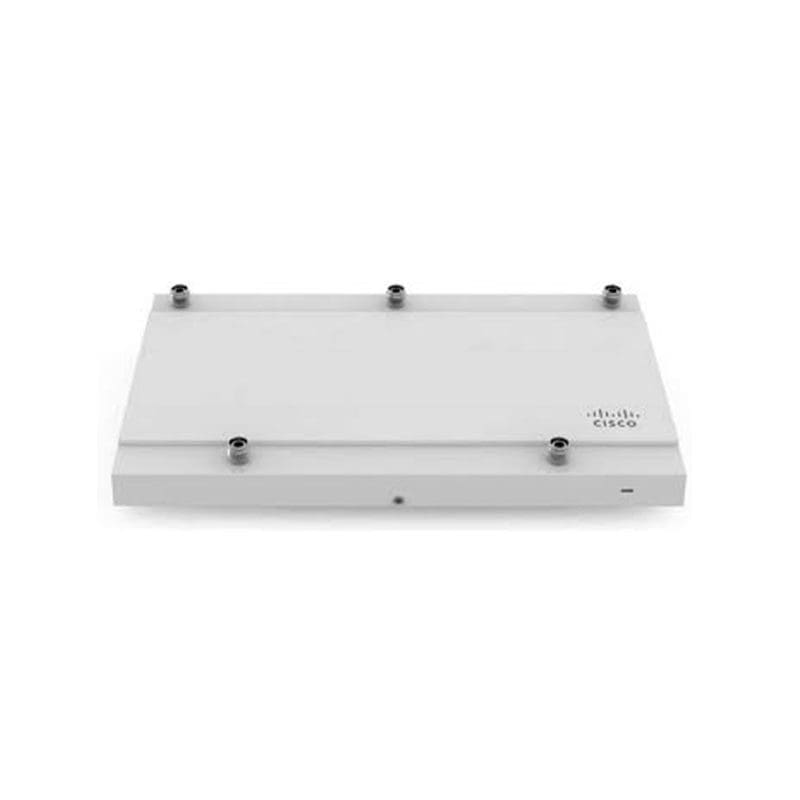

MR42E-HW Cisco Meraki MR42E – Wireless Access Point

MR42E-HW Overview

The Cisco Meraki MR42E is a cloud-managed 3×3 MIMO 802.11ac Wave 2 access point. Designed for general purpose deployments in offices, schools, shops, and hotels, the MR42E provides performance, security, and manageability.
The MR42E supports a variety of smart, auto-detectable external antenna that can deliver both focused, targeted coverage in challenging RF scenarios as well as broader coverage in a variety of environments, including those with very high ceilings. These antenna include panel and panel downtilt omni-directionals, wide patch, and narrow patch options.

MR42E-HW Technical Specifications

Cisco Meraki MR42E – Wireless Access Point

Networking
Compliant Standards :IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11e, IEEE 802.11g, IEEE 802.11h, IEEE 802.11i, IEEE 802.11k, IEEE 802.11n, IEEE 802.11r, IEEE 802.11u, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1x, IEEE 802.3af, IEEE 802.3at
Connectivity Technology :Wireless
Data Link Protocol :IEEE 802.11a, IEEE 802.11ac Wave 2, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Data Transfer Rate :1.9 Gbps
Features :3T3R MIMO technology, Bluetooth Low Energy Beaconing, Cloud managed, DiffServ Code Point (DSCP) support, Firmware upgradable, Hardware encryption, Maximum Ratio Combining (MRC), MU-MIMO technology, Quality of Service (QoS), Security lock slot (cable lock sold separately), SU-MIMO technology, Tagged VLAN, Traffic shaping, Unscheduled Automatic Power Save Delivery (U-APSD), Wi-Fi Multimedia (WMM) support, Wireless Intrusion Detection System (WIDS), Wireless Intrusion Prevention System (WIPS)
Form Factor :External
Network Transport Protocol :IPSec
Power Over Ethernet (PoE) :PoE+
Status Indicators :Boot state, Power, Status
Type :Wireless access point
Wi-Fi Bands :2.4 GHz, 5 GHz
Wireless Protocol :802.11a/b/g/n/ac Wave 2
Interface Provided
Connector Type :RJ-45
Qty :1
Type :1000Base-T (PoE+)
Connector Type :RP-TNC
Qty :5
Type :Antenna
Miscellaneous
Authentication Method :MS-CHAP v.2
Color Category :White
Compliant Standards :AS/NZS 2772, AS/NZS 4268, CAN/CSA-C22.2 No. 60950-1, CISPR 32, EMI Class B, EN 300 328, EN 301 893, EN 301489-1-17, EN 50385, EN 55032, EN 60950-1, EN 62311, EN 62479, EN55024, FCC Part 15 B, FCC Part 15 C, FCC Part 15 E, FCC Part 2, ICES-003, IEC 60950-1, LP0002, RoHS, RSS-102, RSS-247, UL 60950-1
Encryption Algorithm :AES, EAP-SIM, TKIP, WEP, WPA, WPA2-Enterprise, WPA2-PSK
Antenna
Antenna Form Factor :External detachable
Environmental Parameters
Humidity Range Operating :5 – 95% (non-condensing)
Max Operating Temperature :104 °F
Min Operating Temperature :32 °F
Header
Brand :Cisco Meraki
Compatibility :PC
Manufacturer :CISCO DS HARDWARE DIRECT
Model :MR42E
Packaged Quantity :1
Product Line :Cisco Meraki
Power Device
Power Consumption Operational :20 Watt
Dimensions & Weight
Depth :6.3 in
Height :1.7 in
Weight :2.4 lbs
Width :10.6 in
