MS220-48FP-HW Technical Specifications

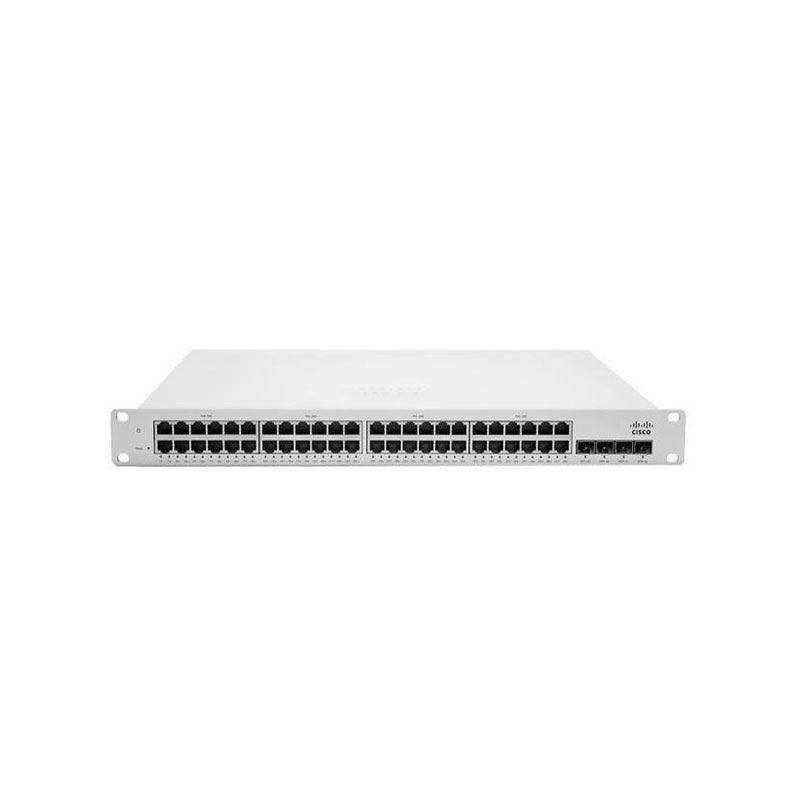

Cisco – MS220-48FP Meraki PoE+ 48-Ports Switch GE
Manufacturer Part Number: MS220-48FP-HW
Brand Name: Cisco Meraki
Product Line: Meraki MS220 Series
Product Type: Cloud-Managed Layer 2 PoE+ Switch
Total Ports: 48
Port Type: 48 x 10/100/1000Base-T RJ-45 + 4 x 1G SFP uplinks
PoE Support: PoE+ (IEEE 802.3af/at), up to 740W budget
Switching Capacity: 128 Gbps
Forwarding Rate: 95.2 Mpps
Layer Support: Layer 2
VLAN Support: Up to 4,094 VLANs (802.1Q)
Spanning Tree Protocols: RSTP, MSTP
Link Aggregation: IEEE 802.3ad LACP
Static Routing: Not supported (L2 only)
Multicast Support: IGMP Snooping
Stacking: Physical stacking supported (up to 8 switches, 80 Gbps stack bandwidth)
Security: 802.1X, DHCP Snooping, Port Security, ACLs
QoS: 802.1p, DSCP prioritization, traffic shaping
