Refurbished MS225-24P-HW Technical Specifications

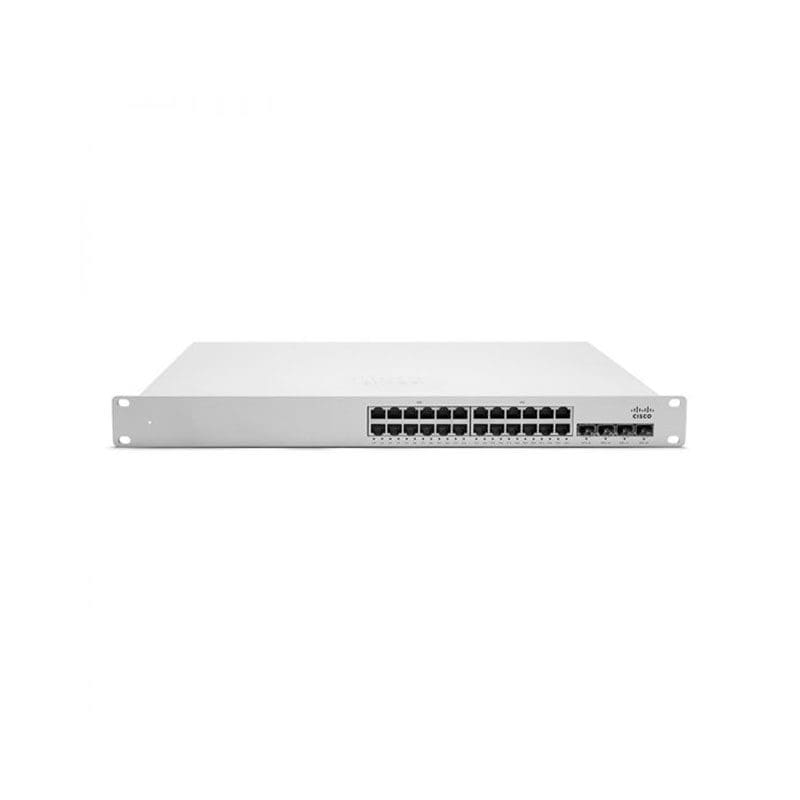

Cisco Meraki MS225-24P switch 24 Port
Dimensions & Weight
Depth :9.8 in
Height :1.7 in
Weight :8.18 lbs
Width :19.1 in
Environmental Parameters
Humidity Range Operating :5 – 90% (non-condensing)
Max Operating Temperature :104 °F
Min Operating Temperature :32 °F
Header
Brand :Cisco Meraki
Compatibility :PC
Manufacturer :CISCO DS HARDWARE DIRECT
Model :MS225-24P
Packaged Quantity :1
Ethernet Technology: Gigabit Ethernet
Product Line :Cisco Meraki Cloud Managed
Product Series : MS225
Interface Provided
Comments :PoE+
Connector Type :RJ-45
PoE Power :25.5 W
Qty :24 Port
Type :1000Base-T
Comments :Uplink
Connector Type :SFP+
Qty :4 SFP+
Type :10GBase-X
Qty :2
Type :Network stack device
Miscellaneous
Authentication Method :RADIUS
Color Category :White
Compliant Standards :CSA, FCC, IC, RCM, RoHS
Height (Rack Units) :1
Rack Mounting Kit :Included
Networking
Compliant Standards :IEEE 802.1ab (LLDP), IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ad (LACP), IEEE 802.3af, IEEE 802.3at
Features :802.1x authentication, Access Control List (ACL) support, Auto-negotiation, Auto-uplink (auto MDI/MDI-X), Bridge protocol data unit (BPDU), Broadcast Storm Control, Cable test, DHCP client, DHCP relay, DHCP snooping, E-mail alert, E-mail notification, Fanless, Flow control, IGMP snooping, Link Aggregation, LLDP support, Multicast filtering function, Port Security, Push notification, Quality of Service (QoS), Rapid Spanning Tree Protocol (RSTP) support, Role-Based Access Control (RBAC), Root Guard, Spanning Tree Protocol (STP) support, Static routing, Syslog support, Zero Touch Auto Provisioning
Form Factor :Desktop, Rack-mountable
Jumbo Frame Support :9600 bytes
MAC Address Table Size :16K entries
Manageable :Yes
Max Units In A Stack :8
PoE Budget :370 W
Ports Qty :24
Power Over Ethernet (PoE) :PoE+
Remote Management Protocol :HTTP, SNMP
Routing Protocol :IGMP
Stackable :Stackable
Status Indicators :Status
Subcategory :Network hubs and switches
Subtype :Gigabit Ethernet
Type :Switch
Performance
Type :Forwarding performance
Value :95.24 Mpps
Type :Stacking bandwidth
Value :80 Gbps
Type :Switching capacity
Value :128 Gbps
Ports
Qty :24
Type :10/100/1000 (PoE+)
Ports (2nd)
Qty :4
Type :SFP+
Power Device
Frequency Required :40 – 60 Hz
Nominal Voltage :AC 120/230 V
Power Redundancy :Yes
