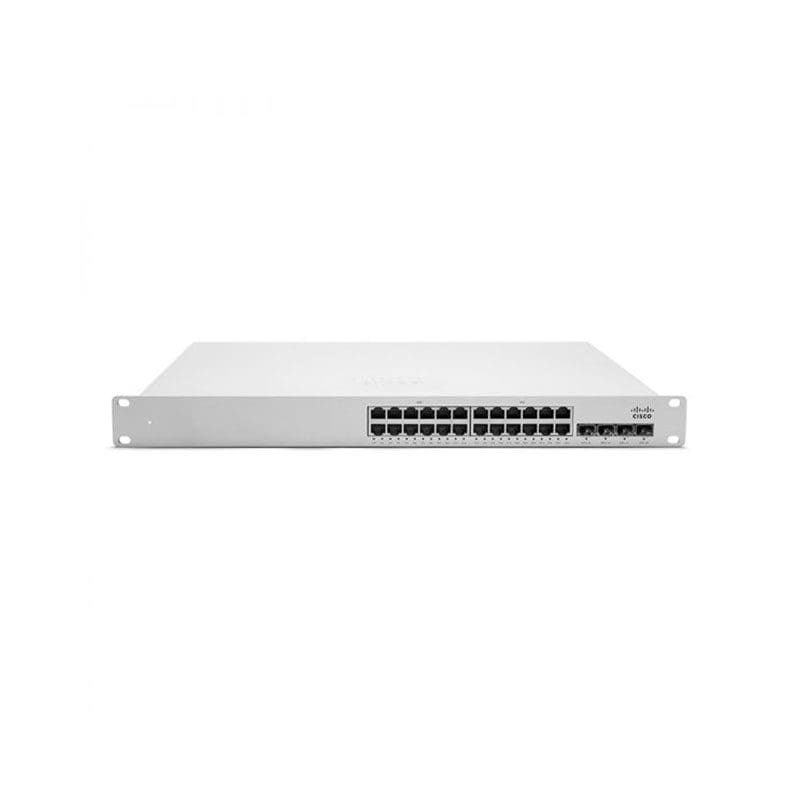

MS250-24P-HW Technical Specifications
Cisco Meraki Cloud Managed MS250-24P Switch 24 Port Managed
Capacity
Type :Forwarding table entries
Value :16000
Type :Tagged VLANs
Value :4095
Dimensions & Weight
Depth :16.4 in
Height :1.7 in
Weight :10.58 lbs
Width :19.1 in
Environmental Parameters
Humidity Range Operating :5 – 95% (non-condensing)
Max Operating Temperature :104 °F
Min Operating Temperature :32 °F
Header
Brand :Cisco Meraki
Compatibility :PC
Manufacturer :Meraki
Model :MS250-24P
Packaged Quantity :1
Product Line :Cisco Meraki Cloud Managed
Product Series : MS250
Interface Provided
Comments :PoE+
Connector Type :RJ-45
PoE Power :30 W
Qty :24 Port
Type :1000Base-T
Comments :Uplink
Connector Type :SFP+
Qty :4 SFP+
Type :10Gbit LAN
Miscellaneous
Authentication Method :RADIUS
Color Category :White
Compliant Standards :CSA, FCC, IC, RCM, RoHS
Height (Rack Units) :1
MTBF :403,717 hours
