MTC40F2046S1RC56BR Technical Specifications

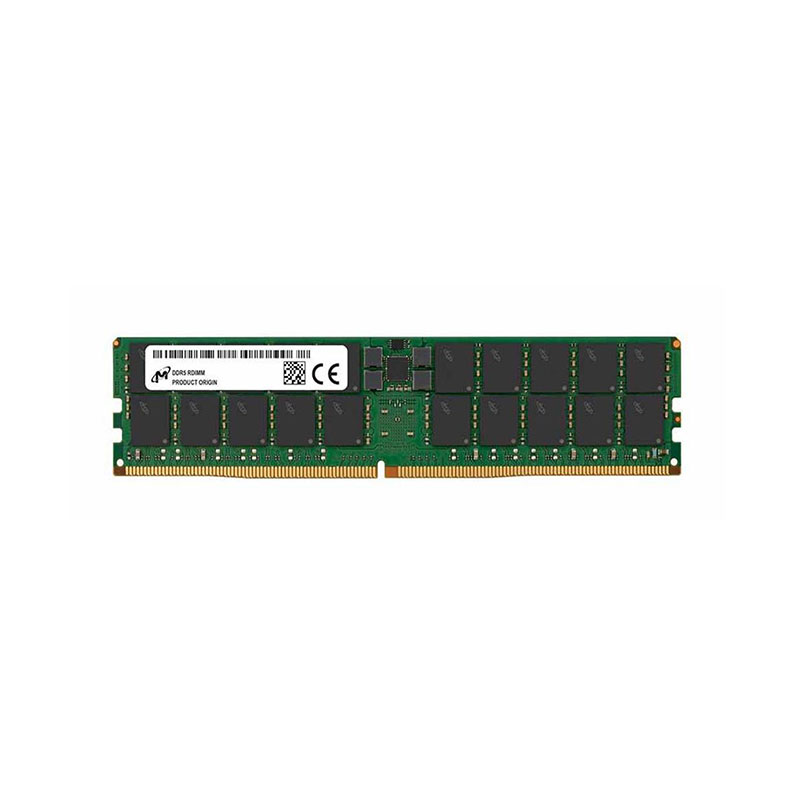

Micron 64GB PC5-44800 DDR5-5600MHz ECC Registered CL46 288-Pin RDIMM 1.1V Dual Rank Memory Module
Manufacturer Part Number: MTC40F2046S1RC56BR
Brand Name: Micron
Product Type: DDR5 Registered DIMM (RDIMM)
Capacity: 64GB
Memory Technology: DDR5 SDRAM
Form Factor: 288-Pin RDIMM
Module Type: Registered (Buffered)
Error Correction: ECC (Error-Correcting Code)
Memory Speed: 5600 MT/s (PC5-44800)
CAS Latency: CL46
Rank: Dual Rank (2Rx8)
Bus Width: 64-Bit
Voltage: 1.1 V
Chip Organization: x8
Data Integrity: ECC Error Detection & Correction
Compatibility: Servers supporting DDR5-5600 RDIMM
Performance: High-bandwidth, low-latency server workloads
Thermal Sensor: Integrated
Operating Temperature: 0 °C to 85 °C
JEDEC Standard: DDR5-5600
Refresh Rate: Auto refresh support
Density per Chip: 8GB per x8 chip
PCB Layers: 8-layer PCB (typical)
Pin Count: 288
Voltage Tolerance: ±5%
