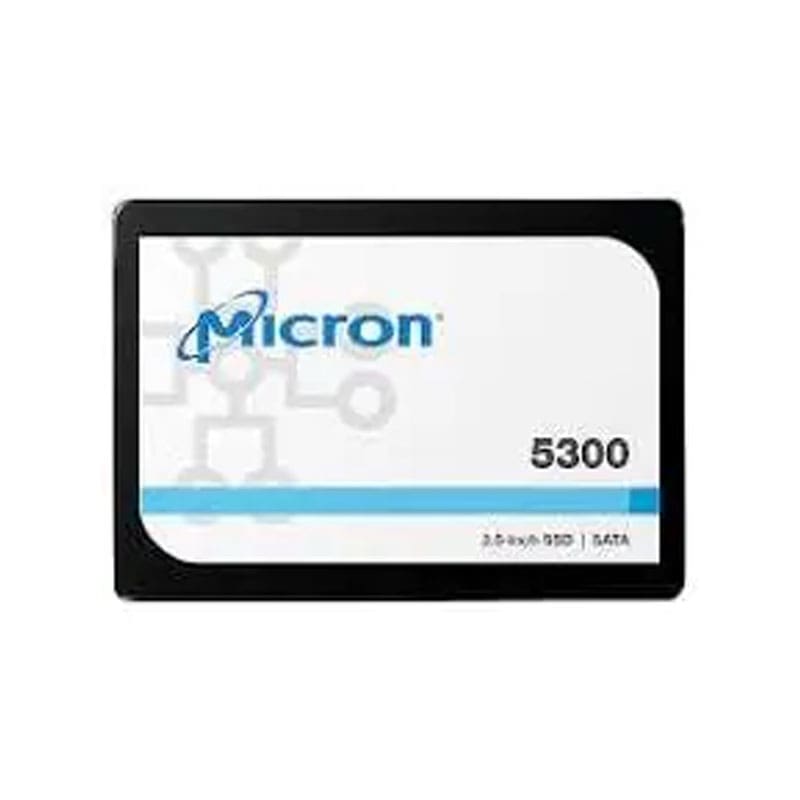

MTFDDAK7T6TDS-1AW16ABYY Micron 7.68TB 2.5in TLC SATA 6Gb/s SSD

MTFDDAK7T6TDS-1AW16ABYY Technical Specifications

Micron 7.68TB 2.5in TLC SATA 6Gb/s SSD

Manufacturer: Micron
Product Type: Solid State Drive (SSD)
Interfaces: SATA 6GBPS

Technical Information for 7.68TB/7680GB Solid State Drive
SSD Class: Server/Enterprise
SSD Capacity: 7.68TB/7680GB
SSD Form Factor: 2.5 Inch
SSD Host Interface: SATA 3.0 (6 GB/s)
Model/Series/Type: 5300P (PRO)
Reliability

MTTF: 3.0 Million Device Hours2
Static and Dynamic Wear Leveling
Uncorrectable Bit Error Rate (UBER): <1 Sector Per 1017 Bits Read
End-To-End Data Protection
Enhanced Power-Loss Data Protection with Data Protection Capacitor Monitoring
Self-Monitoring, Analysis, And Reporting Technology
(SMART) Command Set
Mechanical

2.5-Inch X 7.0mm Form Factor
M.2 Type 2280 Form Factor
ROHS-Compliant Package
Secure Field-Upgradeable Firmware With Digitally
Signed Firmware Image
Power Consumption: 240GB/480GB: <3.0W (TYP);
960GB: <3.4W (TYP); 1920GB: <3.8W (TYP);
3840GB/7680GB: <3.9W (TYP)
Operating Temperature

Commercial (0°C to 70°C) 4
Compliance

Micron SSDS Comply With The Following
Micron Green Standard
Built With Sulfur Resistant Resistors
