MTFDHBE7T6TDF-1AW1ZABYY Micron 7.68TB 7300 Max SSD

MTFDHBE7T6TDF-1AW1ZABYY Technical Specifications

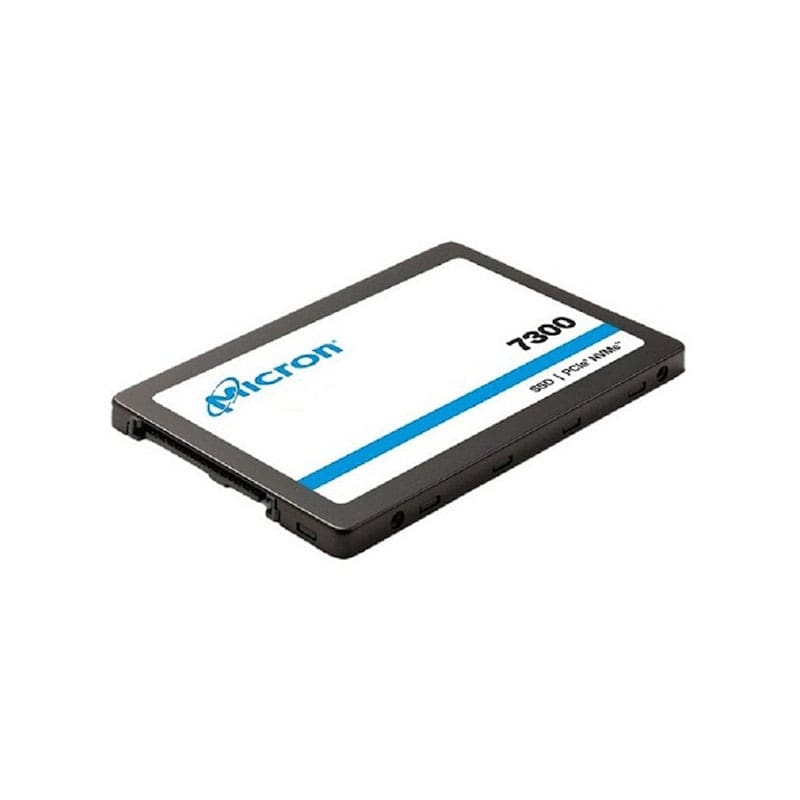

Micron 7.68TB 7300 Max 2.5in 3D TLC PCIe SSD

Brand: Micron
Type: Solid State Drive
Interface: PCI-E
Storage Capacity: 7.68TB
Pluggable: Yes

Drive Type: Internal
Configuration: TLC
TAA Compliant: Yes
Interface Type: PCIe Gen 3 NVMe
Operating Temperature: 0 to +70°C
Form Factor: U.2 2.5in x 7mm
Device Supported: Storage System
NAND Flash Memory Type: Micron 3D TLC NAND Flash

PCI-E SSD Features
Cost-efficient, high-performance, and high capacity
Lower power consumption with 96-layer 3D-NAND
Read speed up to 3.0 GB/s
Write speed up to 1.8 GB/s
Dual port, FW activate without rest, NVME-MI support
Performance of NVMe SSD
Maximum Read Transfer Rate: 3000 MB/s
Maximum Write Transfer Rate: 1800 MB/s
Endurance (DWPD): 1
Endurance (TBW): 22937.60 TB
Endurance Type: Read Intensive
Power Specifications for TLC SSD
Minimum Operating Temperature: 0°C
Maximum Operating Temperature: +70°C
Operating Supply Voltage: 3.3 V
Power Consumption: 12W MAX
