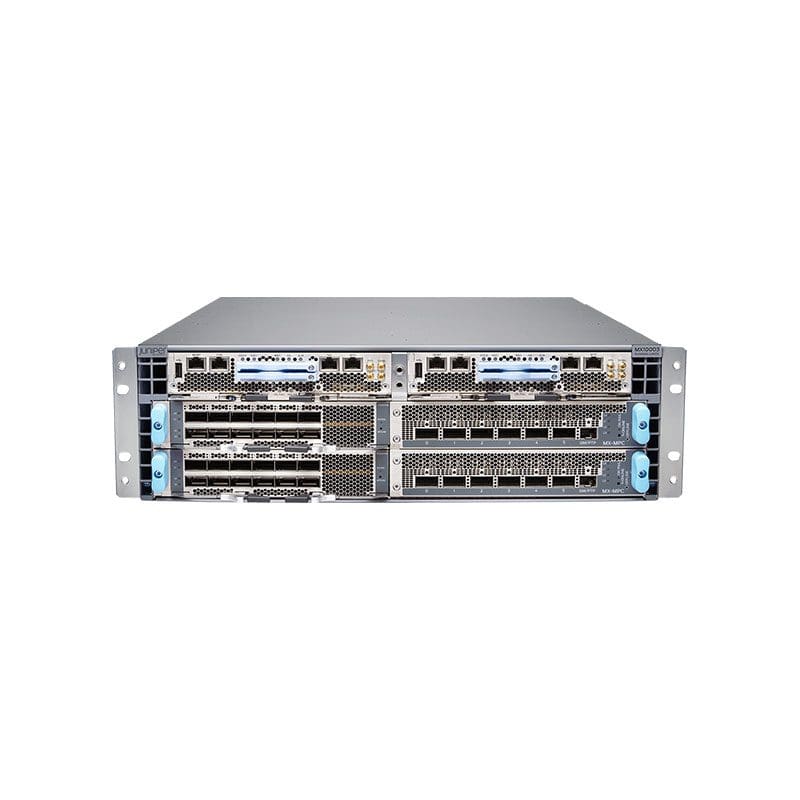

MX10K3-L2103-RU-IR Juniper MX10003 32x10GbE Routing

MX10K3-L2103-RU-IR Technical Specifications

Juniper MX10003 6x100GbE 32x10GbE Universal Routing Platform

Miscellaneous
Included Accessories Air filter, EMI door
Dimensions & Weight
Width 19 in
Depth 30 in
Height 5.2 in
Weight 120 lbs
Environmental Parameters
Min Operating Temperature 32 °F
Max Operating Temperature 114.8 °F
General
Device Type Router
Enclosure Type Rack-mountable – modular – 3U
Connectivity Technology Wired
Data Link Protocol 10 Gigabit Ethernet, 40 Gigabit Ethernet, 100 Gigabit Ethernet
Performance Throughput: 2.4 Gbps
Routing Protocol BGP, GRE, MPLS
Features MPLS support, front to back airflow, Virtual Extensible LAN (VXLAN), 4 fan trays, Media Access Control Security (MACsec)
Expansion / Connectivity
Interfaces LAN: 6 x 100Gb Ethernet ¦ LAN: 32 x 10Gb Ethernet
Expansion Slots Expansion slot
Power
Power Device Internal power supply
Installed Qty 6 (max)
