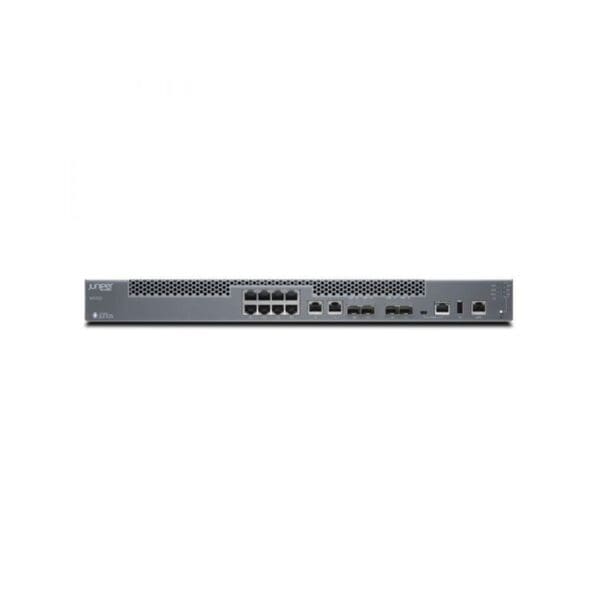

Refurbished MX150 Juniper Technical Specifications
Networks MX-series MX150 router rack mountable
Manufacturer :Netscreen
Brand :Juniper, Juniper Networks
Product Line :Juniper Networks MX-series
Model :MX150
Packaged Quantity :1
Chassis
Airflow Direction :Front to back airflow
Processor
Type :Six-Core Xeon D, Xeon
RAM
Technology :DDR4 SDRAM
Installed Size :32 GB
Hard Drive
Capacity :400 GB
Modem
Type :None
Performance
Performance :Switching capacity: 40 Gbps
Networking
Type :Router
Form Factor :Rack-mountable
Connectivity Technology :Wired
Routing Protocol :BGP, MPLS, GRE
Network / Transport Protocol :IPSec
Status Indicators :Link OK, SSD activity, Online, Alarm
Key Features :VPN support, Firewall, USB port
Features :Multicast Border Gateway Protocol (MBGP), MPLS support, Virtual Extensible LAN (VXLAN), DDos attack prevention, Ethernet OAM, Hierarchical Quality of Service (HQoS), Quality of Service (QoS), Access Control List (ACL) support, Virtual Routing and Forwarding (VRF), Firewall protection, Fast restoration, Front to back airflow, NAT support
Interface Provided
Interfaces :LAN: 10 x 10Base-T/100Base-TX/1000Base-T – RJ-45, Console: 1 x RJ-45, LAN: 2 x 10GBase-X – SFP+, LAN: 2 x 100Base-X/1000Base-X – SFP (mini-GBIC), USB: 1 x 4 pin USB Type A, Management: 1 x RJ-45
OS Provided
Type :Wind River Linux 7
Power Device
Nominal Voltage :AC 120/230 V
System Requirements
OS Required :JUNOS
Miscellaneous
Color Category :Gray
Height (Rack Units) :1
Dimensions & Weight
Width :17.4 inch
Depth :12 inch
Height :1.7 inch
Weight :9.48 lbs
Environmental Parameters
Min Operating Temperature :32 degree Fahrenheit
Max Operating Temperature :122 degree Fahrenheit
Humidity Range Operating :5 – 90%
