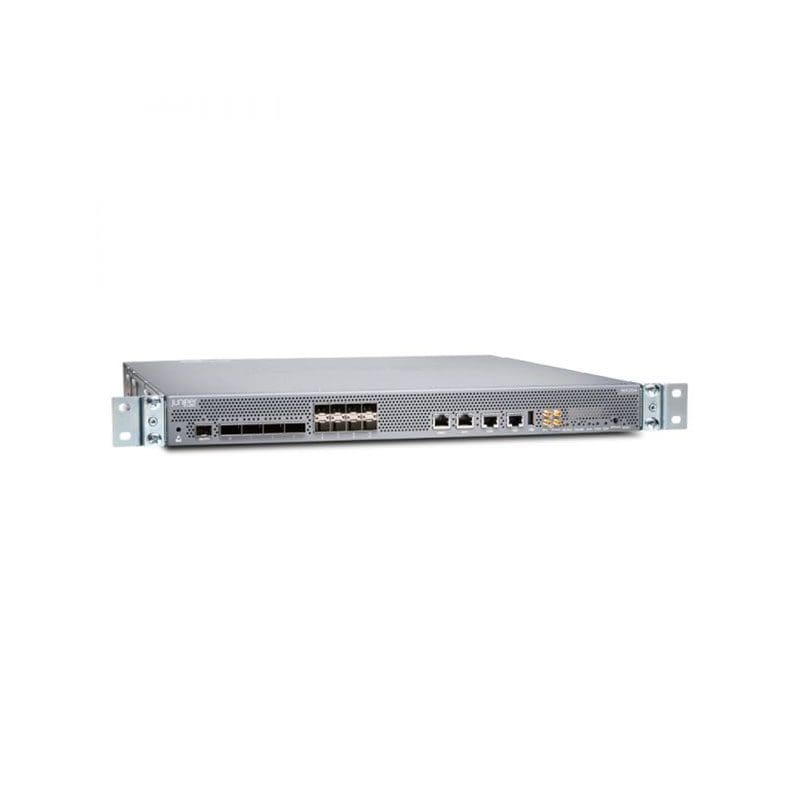

Refurbished MX204 Technical Specifications
Juniper Networks MX-series router rack mountable
Manufacturer :Netscreen
Brand :Juniper, Juniper Networks
Product Line :Juniper Networks MX-series
Model :MX204
Packaged Quantity :1
Chassis
Airflow Direction :Front to back airflow
RAM
Technology :DDR4 SDRAM
Installed Size :32 GB
Hard Drive
Capacity :128 GB
Modem
Type :None
Performance
Performance :Switching capacity: 800 Gbps
Networking
Type :Router
Form Factor :Rack-mountable
Modular :Modular
Connectivity Technology :Wired
Routing Protocol :BGP, MPLS, GRE
Network / Transport Protocol :IPSec
Status Indicators :SSD activity, Link OK, Alarm, Online
Key Features :Firewall, USB port, VPN support
Features :MPLS support, Ethernet OAM, Hierarchical Quality of Service (HQoS), Access Control List (ACL) support, Firewall protection, Virtual Extensible LAN (VXLAN), Non-Stop Routing (NSR), Front to back airflow, Multicast Border Gateway Protocol (MBGP), Redundant fans, 3 fan trays, DDos attack prevention, Virtual Routing and Forwarding (VRF), Flow monitoring, Quality of Service (QoS), Fast restoration, NAT support
Interface Provided
Interfaces :USB: 1 x 4 pin USB Type A, Console: 1 x RJ-45, LAN: 8 x 10Gb Ethernet – SFP+, Management: 1 x RJ-45, LAN: 4 x 100Gb Ethernet
Power Device
Type :Internal power supply
Power Redundancy :Yes
Max Supported Qty :2
System Requirements
OS Required :JUNOS
Miscellaneous
Color Category :Gray
Height (Rack Units) :1
Compliant Standards :NEBS, GR-1089-CORE
Dimensions & Weight
Width :17.6 inch
Depth :18.7 inch
Height :1.8 inch
Weight :17 lbs
Environmental Parameters
Min Operating Temperature :32 degree Fahrenheit
Max Operating Temperature :131 degree Fahrenheit
Humidity Range Operating :5 – 90%
