MZ3LO15THBLA-00A07 Technical Specifications

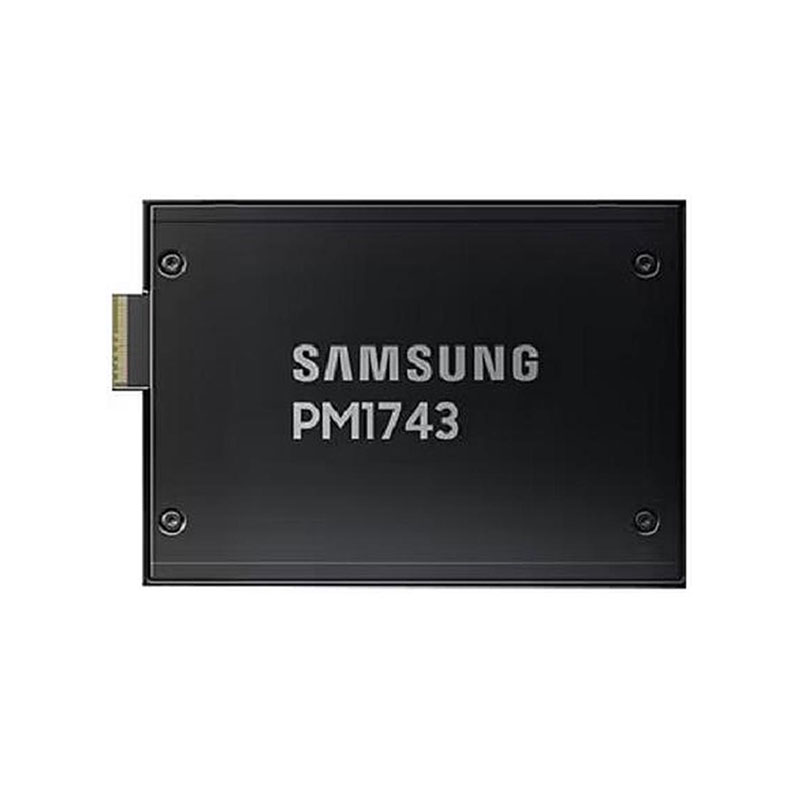

Samsung PM1743 15.36TB TLC PCI Express NVMe 5.0 x4 RI E3.S Solid State Drive (SSD)
Model: MZ3LO15THBLA-00A07
Series: Samsung PM1743
Capacity: 15.36 TB
Interface: PCIe 5.0 ×4 (NVMe 2.0)
Form Factor: E3.S (7.5 mm)
NAND Type: TLC (Triple-Level Cell)
Usage: Read-Intensive (1 DWPD, 5 Years)
Performance
Sequential Read: Up to 14,000 MB/s
Sequential Write: Up to 7,100 MB/s
Random Read (4K): Up to 2,500,000 IOPS
Random Write (4K): Up to 360,000 IOPS
Latency (R/W): ~75 µs / ~15 µs
Reliability
Endurance: ~28 PBW (Petabytes Written)
MTBF: 2.5 Million Hours
DWPD: 1 DWPD (5 Years)
Error Correction: LDPC ECC
Encryption: AES-256 XTS, TCG Opal 2.0
Physical
Environmental
Operating Temp: 0 °C – 70 °C
Storage Temp: −40 °C – 85 °C
Ideal For
Enterprise Servers
Data Centers
AI/ML & Analytics
High-Performance Computing
Cloud Infrastructure
