MZ3LO3T8HCJR-00B07 Samsung 3.84TB PCI E NVMe Solid State Drive SSD
MZ3LO3T8HCJR-00B07 Overview

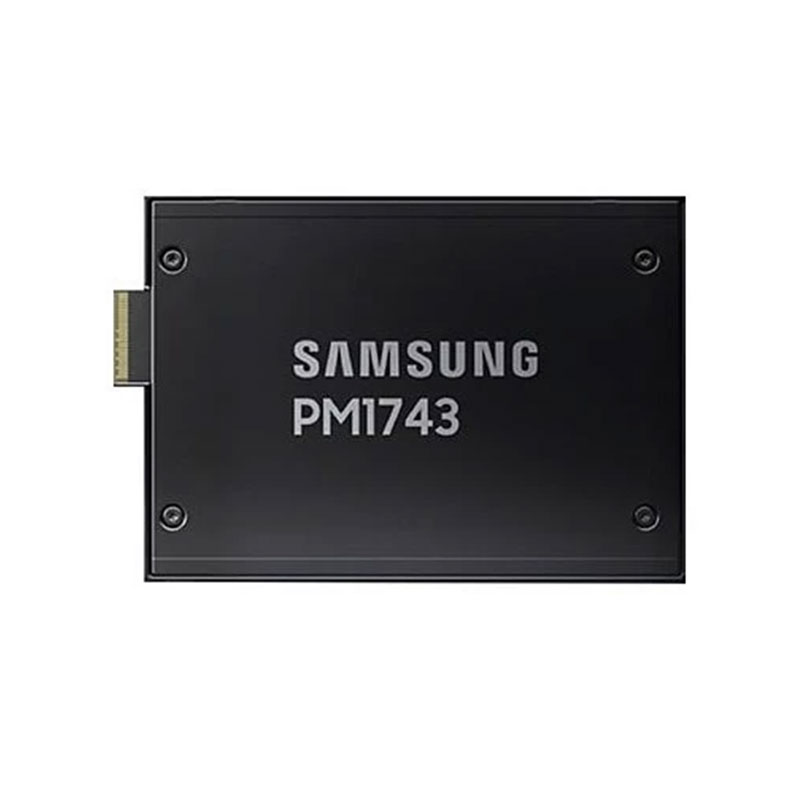

The Samsung MZ‑3LO3T8HCJR PM1743 3.84 TB PCIe 5.0 ×4 NVMe E3.S 2.5‑inch Internal Solid State Drive is a next‑generation enterprise‑grade SSD designed for data centers, cloud platforms, servers, and other high‑performance storage environments. It uses the PCI Express 5.0 ×4 NVMe interface, which offers significantly higher bandwidth and lower latency than PCIe 4.0 drives — enabling much faster data transfers that accelerate demanding workloads like virtualization, analytics, AI/ML, and large‑scale databases. The drive comes in the E3.S form factor (7.5 mm thick), a modern enterprise layout that supports hot‑swappable deployment and optimized thermal performance in dense server racks.
MZ3LO3T8HCJR-00B07 Technical Specifications
Samsung PM1743 3.84TB Multi-level Cell PCI Express NVMe 5.0 x4 E3.S 2.5-In Internal Solid State Drive
Type : Solid State Drive – Internal
Capacity : 3.84 Tb
Host Interface : Pci Express 5.0 X4 (nvme)
Form Factor : E3.s
Nand Flash Memory Type : Multi-level Cell (mlc)
Hardware Encryption : Yes
Performance :
Internal Data Rate : 14000 Mb/s (read) / 6000 Mb/s (write)
Maximum 4kb Random Write : 280000 Iops
Maximum 4kb Random Read : 2500000 Iops
Ssd Endurance : 7008 Tb
Reliability :
Mtbf : 2,500,000 Hours
Drive Writes Per Day (dwpd) : 1
Physical Characteristics :
Depth : 4.4 In
Height : 0.3 In
Weight : 4.13 Oz
