MZILS3T8HMLH0D4 Samsung 3.8TB TLC SAS 12Gbps (SSD)
MZILS3T8HMLH0D4 Overview

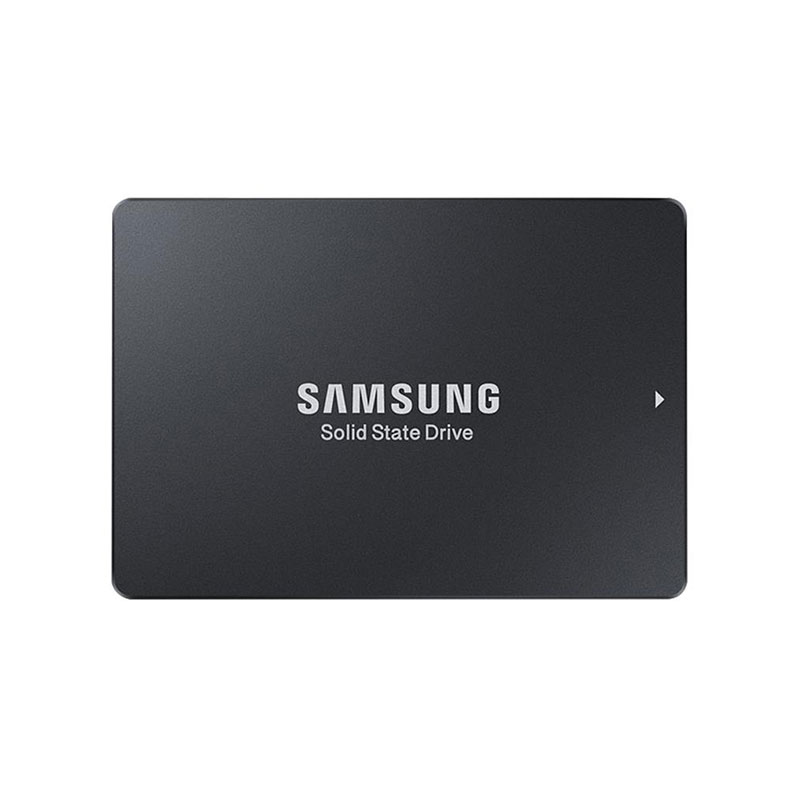

The Samsung PM1633a 3.84 TB SSD is an enterprise-grade, 2.5-inch SAS solid-state drive engineered for high-capacity and high-reliability data center environments. It uses a 12 Gbps SAS interface to deliver enterprise-class performance with the robustness and redundancy required in mission-critical storage systems. The drive’s 3.84 TB capacity makes it ideal for consolidating large data workloads while minimizing the physical footprint in racks.
Built with 3D V-NAND TLC flash, this SSD balances cost-efficiency with endurance. It consistently delivers up to 1,250 MB/s sequential read and 1,100 MB/s sequential write speeds. For random I/O, the drive achieves around 200,000 IOPS for 4 KB reads and 25,000 IOPS for 4 KB writes, making it well-suited for mixed enterprise workloads.
MZILS3T8HMLH0D4 Technical Specifications
Samsung PM1633a Series 3.8TB TLC SAS 12Gbps 2.5-inch Internal Solid State Drive (SSD)
Manufacturer: Samsung
Manufacturer Part: MZILS3T8HMLH0D4
Capacity: 3.84TB
Form Factor: 2.5-inch (15mm)
Interface: SAS 12Gbps
NAND Type: TLC V-NAND
Performance Class: Read Intensive
Sequential Read: Up to 1,300 MB/s
Sequential Write: Up to 1,200 MB/s
Random Read (4K): Up to 200,000 IOPS
Random Write (4K): Up to 35,000 IOPS
Endurance: 1 DWPD
Power Loss Protection: Yes
MTBF: 2,000,000 hours
UBER: < 1 error per 10^17 bits
Operating Temperature: 0°C to 70°C
Active Power: Around 10W
Dimensions: 70 × 100 × 15 mm
