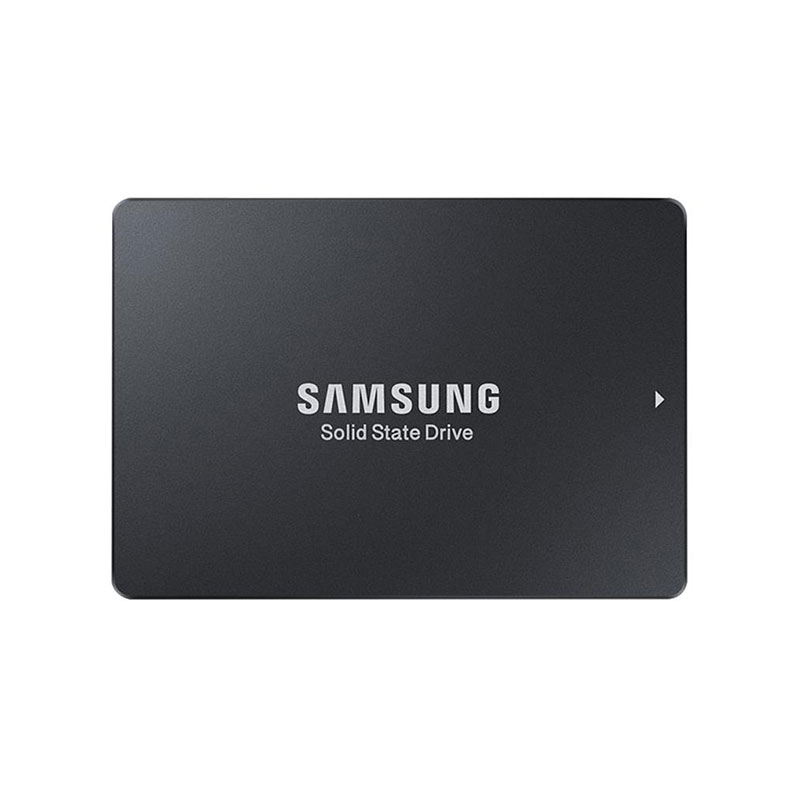

MZILT960HAHQ0D4 Samsung 960 GB 2.5″ SAS 12 Gb/s SSD

MZILT960HAHQ0D4 Overview

The Samsung PM1643 960GB SAS SSD is an enterprise-class, read-intensive storage solution designed for servers and data centers that require fast, stable, and reliable performance. Equipped with a 12Gb/s SAS interface and built on TLC V-NAND technology, it delivers high-speed sequential read performance and excellent random read IOPS, making it ideal for workloads such as virtualization, cloud applications, large-scale analytics, and read-heavy database operations. Its 2.5-inch enterprise form factor ensures smooth integration into a wide range of storage arrays and server platforms.
Engineered for 24/7 operation, the PM1643 includes essential enterprise reliability features such as power-loss protection, end-to-end data integrity, and robust ECC algorithms, which protect data from corruption and unexpected outages.

Availability: Out of stock
SKU:MZILT960HAHQ0D4
Brand:

MZILT960HAHQ0D4 Technical Specifications

Samsung PM1643 960 GB 2.5″ SAS 12 Gb/s Read-Intensive Enterprise SSD

Manufacturer:
Manufacture Part Numbr: MZILT960HAHQ0D4
Capacity: 960GB
Form Factor: 2.5-inch (SFF)
Interface: SAS 12Gbps
NAND Type: 3D TLC
Performance Class: Read-Intensive
Sequential Read: Up to 2,100 MB/s
Sequential Write: Up to 1,000 MB/s
Random Read (4K): Up to 400,000 IOPS
Random Write (4K): Up to 70,000 IOPS
Endurance: 1 DWPD
Power Loss Protection: Yes
MTBF: 2,000,000 hours
UBER: < 1 error per 10^17 bits
Active Power: ~12–14W
Operating Temperature: 0°C to 70°C
Dimensions: 100 × 70 × 15 mm
