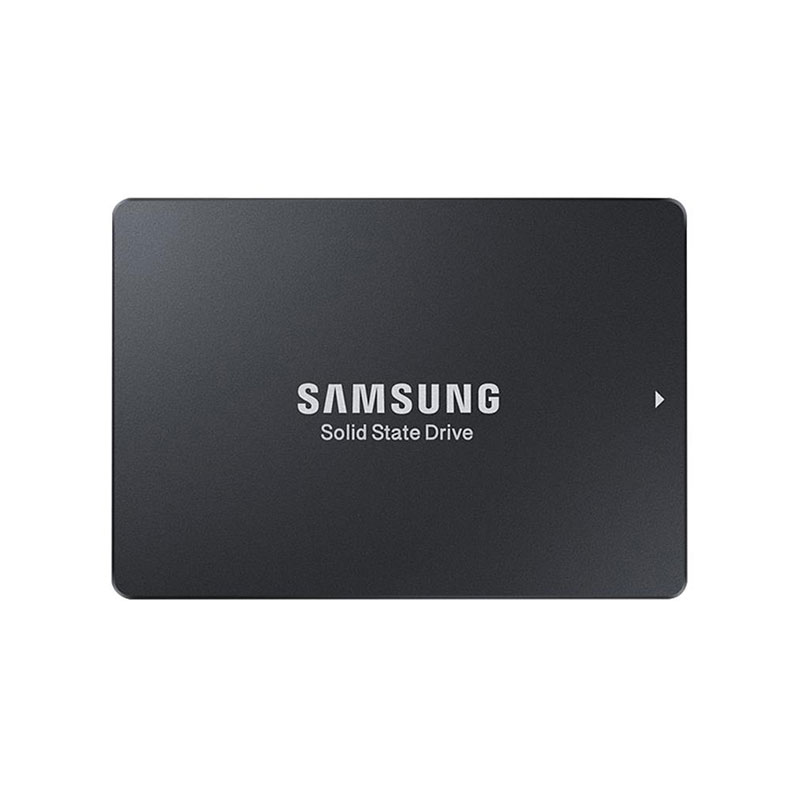

MZILT960HAHQAD4 Samsung 960GB TLC SAS 12Gbps (SSD)
MZILT960HAHQAD4 Overview
The Samsung PM1643 960GB SAS SSD is an enterprise-grade solid-state drive designed to deliver reliable, high-speed storage performance for server and data-center environments. Featuring a 12Gbps SAS interface and a 2.5-inch form factor, this SSD integrates seamlessly into enterprise storage arrays and compact server systems. Built with TLC V-NAND flash technology and an advanced Samsung enterprise controller, it provides consistent read-focused performance with fast sequential throughput and strong random I/O capabilities, making it well suited for workloads such as virtualization platforms, cloud services, analytics processing, and read-intensive database operations.
MZILT960HAHQAD4 Technical Specifications
Samsung PM1643 960GB TLC SAS 12Gbps 2.5-Inch Solid State Drive (SSD)
Manufacturer: Samsung
Manufacturer Part: MZILT960HAHQAD4
Capacity: 960GB
Form Factor: 2.5-inch (15mm)
Interface: SAS 12Gbps
NAND Type: TLC
Usage Class: Read-Intensive
Sequential Read: Up to 2,100 MB/s
Sequential Write: Up to 1,000 MB/s
Random Read (4K): Up to 400,000 IOPS
Random Write (4K): Up to 70,000 IOPS
Endurance: 1 DWPD
Power Loss Protection: Yes
MTBF: 2,000,000 hours
UBER: < 1 per 10^17 bits
Active Power: ~12W
Operating Temp: 0°C – 70°C
Dimensions: 100 × 70 × 15 mm
