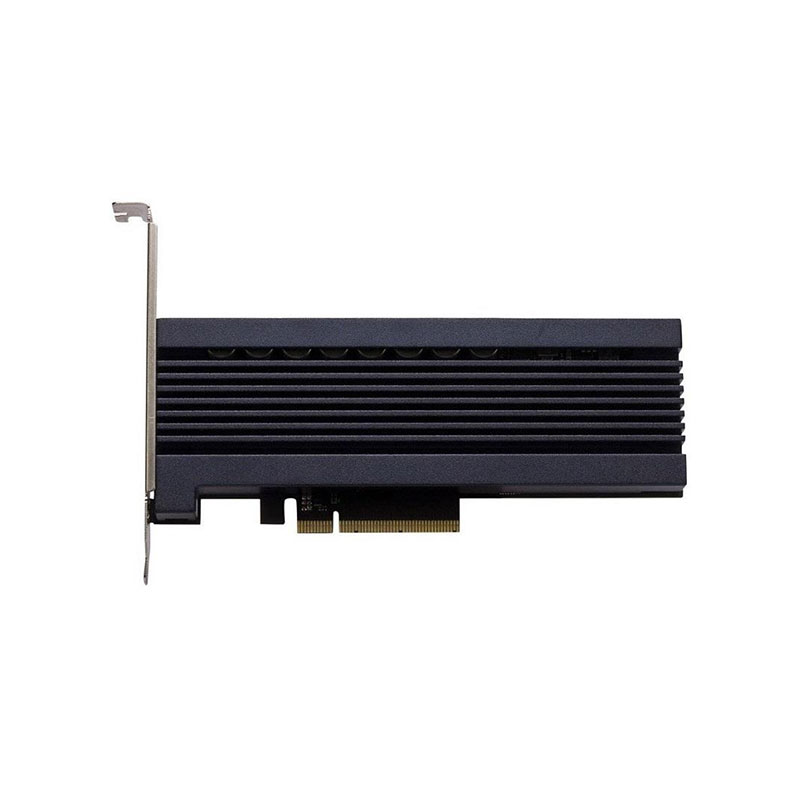

MZPLL1T6HAJQ-00AH3 Samsung 1.6TB TLC PCI E NVMe (SSD)
MZPLL1T6HAJQ-00AH3 Overview
The Samsung PM1725b 1.6TB is an enterprise-grade NVMe solid-state drive designed for ultra-high-performance data-center and server workloads. Built in a PCI Express 3.0 x8 add-in card (HHHL) form factor, this SSD offers extremely high bandwidth and ultra-low latency compared to traditional SAS or SATA storage solutions. Using Samsung’s advanced TLC V-NAND technology paired with a powerful enterprise NVMe controller, it delivers sustained high throughput and excellent random I/O performance, making it ideal for demanding applications such as virtualization, big-data analytics, real-time databases, AI processing, and cloud infrastructure.
MZPLL1T6HAJQ-00AH3 Technical Specifications
Samsung Enterprise PM1725b Series 1.6TB TLC PCI Express 3.0 x8 NVMe (PLP) Add-in Card Solid State Drive (SSD)
Manufacturer: Samsung
Manufacturer Part : MZPLL1T6HAJQ-00AH3
Capacity: 1.6 TB
Interface: PCIe 3.0 x8, NVMe
Form Factor: HH-HL (Add-in Card)
NAND Type: TLC (V-NAND)
Sequential Read: Up to ~5,400 MB/s
Sequential Write: Up to ~2,000 MB/s
Random Read (4K): ~750,000 IOPS
Random Write (4K): ~135,000 IOPS
Endurance: Up to 3–5 DWPD (Drive-Writes Per Day)
Power Loss Protection (PLP): Yes
MTBF: 2,000,000 hours
UBER (Uncorrectable Bit Error Rate): ≤ 1 per 10^17 bits read
Power (Active): ~23 W
Operating Temperature: 0 °C – 70 °C
