MZWLO15THBLA Technical Specifications

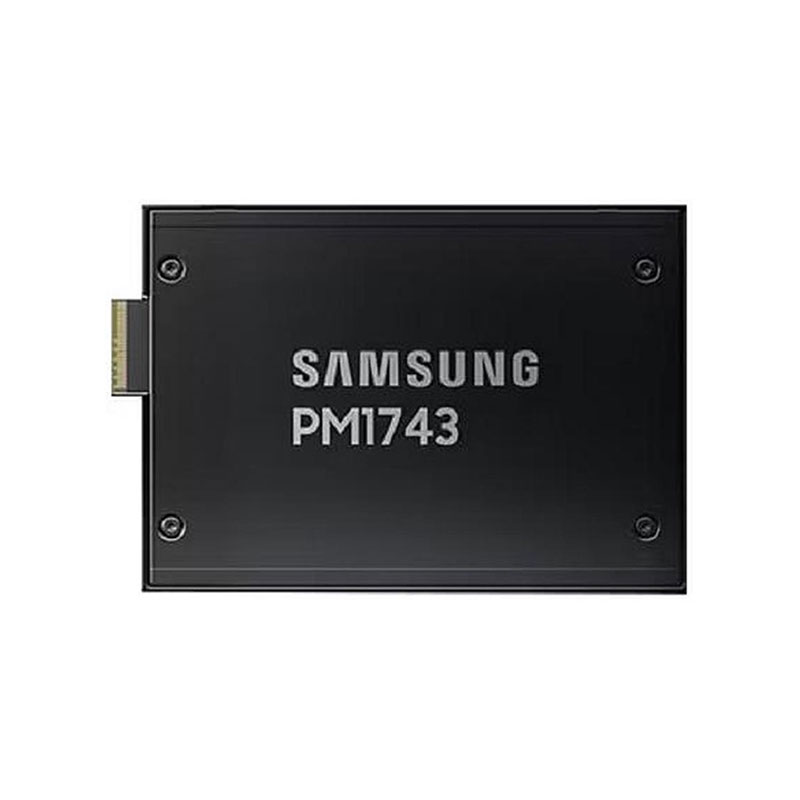

Samsung PM1743 15.36TB PCI Express 5.0 x4 NVMe U.3 2.5-Inch Solid State Drive (SSD)
Manufacturer: Samsung
Manufacturer Part: MZWLO15THBLA
Capacity: 15.36 TB
Form Factor: 2.5-inch
Interface: PCIe 5.0 x4, NVMe
NAND Type: Samsung V-NAND TLC (128-layer)
Sequential Read: up to ~14,000 MB/s
Sequential Write: up to ~7,100 MB/s
Random Read: up to ~2,500,000 IOPS (4 KB)
Random Write: up to ~360,000 IOPS (4 KB)
Endurance: 1 DWPD ~28,032 TB total writes
MTBF: ~2,500,000 hours
Data Protection: End-to-end data protection,
ECC/LDPC,
power-loss data protection
Encryption: AES-256 / TCG Opal 2.0
Power Consumption (active): ~22.5-25 W; Idle: ~8 W
