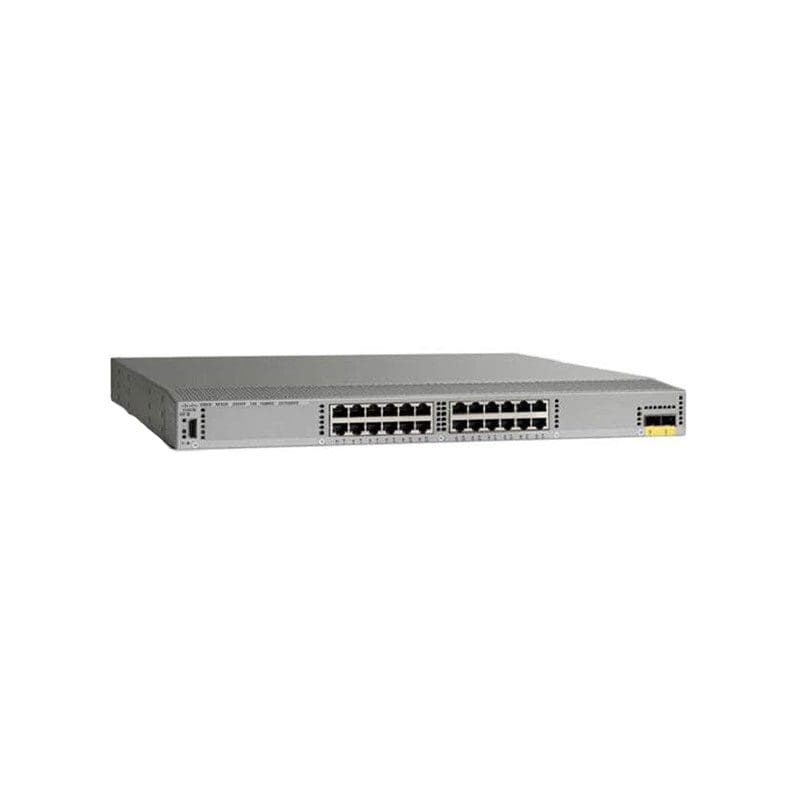

Refurbished N2K-C2224TF-1GE Technical Specifications
Cisco Nexus 2224TF Fabric Extender expansion module
Manufacturer Cisco Systems, Inc
Manufacturer Part Number N2K-C2224TF-1GE-RF
Brand Name Cisco
Product Line Nexus
Product Series 2000
Product Model 2224TP
Product Name Nexus 2224TP GE Fabric Extender
Packaged Quantity 1
Product Condition Refurbished
Product Type Fabric Extender
Technical Information−
Physical Characteristics
Form Factor Rack-mountable
Height 1.7″
Width 17.3″
Depth 17.7″
Weight (Approximate) 16.60 lb
Miscellaneous
Additional Information
Fabric extender host interfaces: 24
Fabric extender host interfaces type: 100BASE-T/1000BASE-T ports: RJ-45 connectors
Fabric extender fabric interfaces: 2
Fabric speed: 20 Gbps in each direction (40 Gbps full duplex)
Oversubscription: 1.2:1
Performance: Hardware forwarding at 88 Gbps or 65 mpps
Typical input operating power: 80W (max 95W)
Output current: 5A/7A (typical/maximum)
Heat dissipation: 201/282 BTU/hour (typical/maximum)
Application/Usage Switch
Compatibility
Cisco Nexus Switches:
5000 Series
6000 Series
7000 Series
9000 Series
