N2K-C2224TP-1GE Technical Specifications

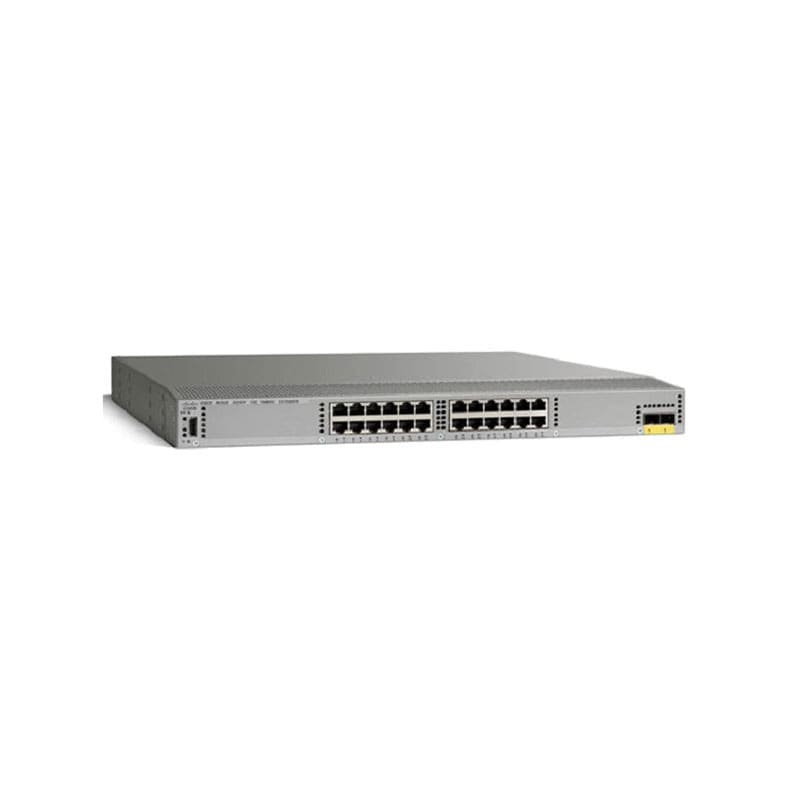

Cisco Nexus 2224TP Fabric Extender Expansion module Gigabit Ethernet x 24 + 10 Gigabit SFP+ x 2
Brand: Cisco
Product Line: Cisco Nexus
Model: 2224TP Fabric Extender
Manufacturer: CISCO DS HARDWARE DIRECT
Network & Communication
Cable Type: Ethernet 1000Base-T, Ethernet 100Base-TX
Connectivity Technology: Wired
Data Link Protocols: Fast Ethernet, Gigabit Ethernet
Form Factor: Rack-mountable
Product Type: Expansion module
Expansion Slots
Expansion Slots: 2 (total) / 2 (free) x SFP+
Connectivity
Interface Provided: 24 x 1000Base-T – RJ-45
Port Quantity: 24
Power
Power Consumption Operational: 95 watt
Technical Information
Max Operating Temperature: 104 degree Fahrenheit
Min Operating Temperature: 32 degree Fahrenheit
Operating Humidity: 5 – 95%
Dimensions & Weight
Height: 1.7 inch
Weight: 16.53 lbs
Width: 17.3 inch
Depth: 17.7 inch
