N2K-C2248TP-1GE Technical Specifications

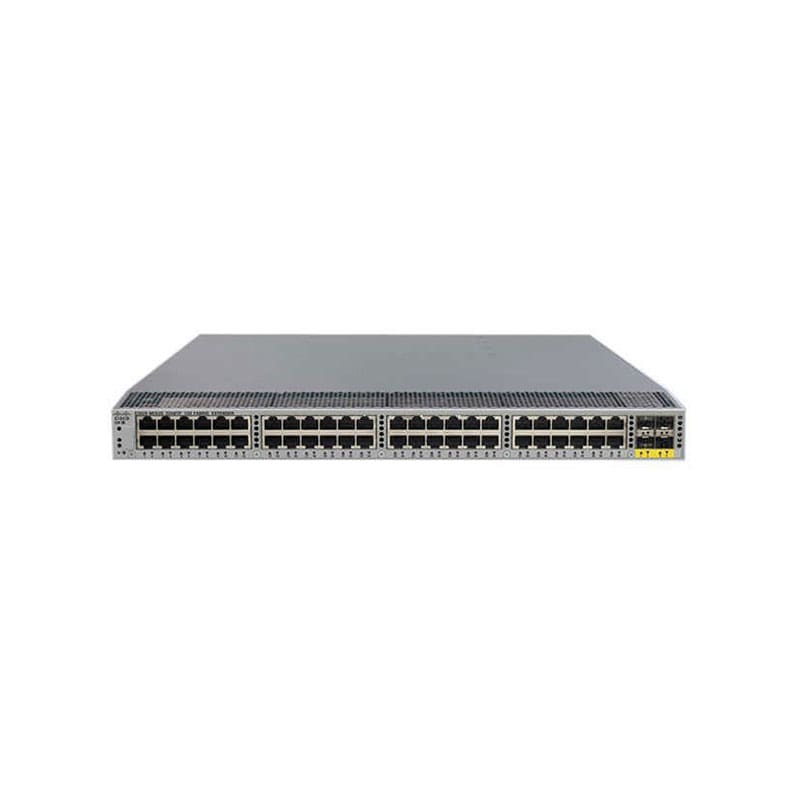

Cisco Nexus 2248TP GE Fabric Extender Expansion module Gigabit Ethernet x 48
Brand: Cisco
Product Line: Cisco Nexus
Model: 2248TP GE Fabric Extender
Manufacturer: CISCO DS HARDWARE DIRECT
Network & Communication
Connectivity Technology: Wired
Data Link Protocols: Fast Ethernet, Gigabit Ethernet
Form Factor: Rack-mountable
Network Standard: ICMP/IP, TCP/IP, UDP/IP
Product Type: Expansion module
Remote Management: RMON, SNMP 1, SNMP 2, SNMP 3
Status Indicators: Port status, Power, System
Expansion Slots
Expansion Slots: 4 (total) / 4 (free) x SFP+
Connectivity
Interface Provided: 48 x 1000Base-T – RJ-45
Port Quantity: 48
Network & Adapter Ports: 10/100/1000
Power
Frequency: 50/60 hertz
Power Consumption Operational: 110 watt
Technical Information
Max Operating Temperature: 104 degree Fahrenheit
Min Operating Temperature: 32 degree Fahrenheit
Operating Humidity: 5 – 95%
Dimensions & Weight
Height: 1.7 inch
Weight: 17.64 lbs
Width: 17.3 inch
Depth: 17.7 inch
