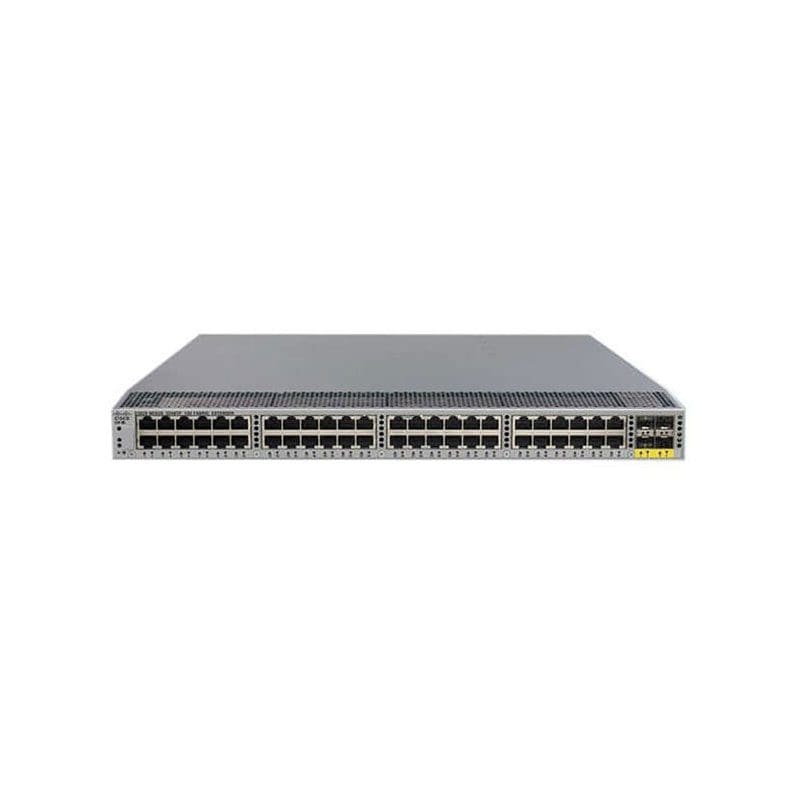

Refurbished N2K-C2248TP-E Technical Specifications
Cisco Nexus 2000 Fabric Extender
Manufacturer Cisco Systems, Inc
Manufacturer Part Number N2K-C2248TP-E-RF
rand Name Cisco
Product Line Nexus
Product Series 2000
Product Name Nexus 2000 Fabric Extender
Product Condition Refurbished
Product Type Fabric Extender
Form Factor :Rack-mountable
Connectivity Technology :Wired
Cabling Type :Ethernet 1000Base-T, Ethernet 100Base-TX
Data Link Protocol :Fast Ethernet, Gigabit Ethernet
Remote Management Protocol :CLI, RMON, SNMP 1, SNMP 2, SNMP 3
Status Indicators :Fan, Module locator, Port status, Power, System
Features :Access Control List (ACL) support, Auto-negotiation, Cisco Gigabit EtherChannel, Class of Service (CoS), Flow control, Full duplex capability, Hot swappable power supply, Jumbo Frames support, Management Information Base (MIB), Quality of Service (QoS), Spanning Tree Protocol (STP) support, Syslog support, Tagged VLAN, Virtual PortChannel (vPC) technology, VLAN support, Weighted Round Robin (WRR) queuing
Compliant Standards :IEEE 802.1p, IEEE 802.1Q, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3an, IEEE 802.3u, IEEE 802.3x
Ports
Qty :48
Type :10/100/1000
Ports (2nd)
Qty :4
Type :10 Gigabit SFP+
Expansion Slots
Expansion Slots :4 (total) / 4 (free) x SFP+
Interface Provided
Interfaces :48 x 1000Base-T – RJ-45
Miscellaneous
Compliant Standards :AS/NZS 60950-1, CISPR 22 Class A, CISPR 24, CNS 13438(95) Class A, CSA C22.2 No. 60950-1, Directive 2004/108/EC, Directive 2006/95/EC, EN 300 386, EN 60950-1, EN 61000-3-2, EN 61000-3-3, EN 61000-6-1, EN300-386, EN50082-1, EN55022 Class A, EN55024, FCC CFR47 Part 15, GB 4943.1-2011, GB4943.1-2011, ICES-003 Class A, IEC 60950-1, KN22 Class A, RoHS 6/6, UL 60950-1, VCCI Class A
Dimensions & Weight
Width :17.3 inch
Depth :17.7 inch
Height :1.7 inch
Weight :17.64 lbs
Environmental Parameters
Min Operating Temperature :32 degree Fahrenheit
Max Operating Temperature :104 degree Fahrenheit
Humidity Range Operating :5 – 95% (non-condensing)
Compatibility
Compatible With :Cisco Nexus 5010, 5010 OSM version, 5010 Solutions Kit 8G FC Unified Fabric, 5020, 5020 IBM OSM version, 5020 Solutions Kit 8G FC Unified Fabric, 5548 Storage Solutions Bundle, 5548P, 5548UP, 5548UP in N5548UP-N2K Bundle, 5548UP Storage Solutions Bundle, 5596T, 5596UP, 5596UP Storage Solutions Bundle, 6001, 6001P, 6001T, 6004, 6004 24 x 40GE Ports/FCoE Bundle, 6004EF, 7004 Bundle, 7009, 7010, 7010 Bundle, 7700 18 Slot Chassis, 7700 18-Slot Switch 220 Gbps/Slot Fabric Module, 7700 6 Slot Chassis, 7700 6-Slot Switch 220 Gbps/Slot Fabric Module, 7700 Switches 10-Slot Chassis, 7700 Switches 10-Slot Switch 220 Gbps/Slot Fabric Module, 7706, 7710, 7710 Bundle
