Refurbished N2K-C2348TQ-E Technical Specifications

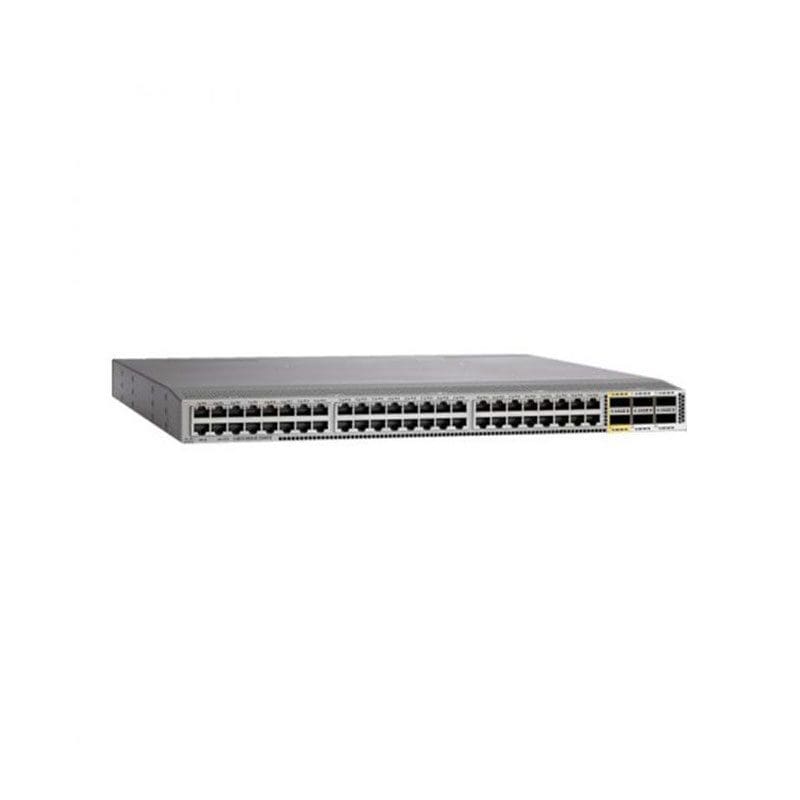

Cisco Nexus 2348TQ Fabric Extender
Manufacturer :CISCO DS HARDWARE DIRECT
Brand :Cisco
Product Line :Cisco Nexus
Model :2348TQ-E Fabric Extender
Packaged Quantity :1
Performance
Performance :Forwarding performance (full duplex): 480 Gbps, Forwarding performance: 240 Gbps
Capacity
Capacity :ACL entries: 256, Jumbo frame size: 9216
Networking
Type :Fabric Extender
Form Factor :Rack-mountable
Connectivity Technology :Wired
Data Link Protocol :10 Gigabit Ethernet, 40 Gigabit Ethernet, Fast Ethernet, Fibre Channel over Ethernet (FCoE), Gigabit Ethernet
Remote Management Protocol :CLI, RMON, SNMP 1, SNMP 2, SNMP 3
Status Indicators :Port status, Power, System
Features :3 fans, Access Control List (ACL) support, Auto-negotiation, Class of Service (CoS), Data Center Bridging (DCB), FCoE support, Hot swappable power supply, In-Service Software Upgrade (ISSU), Jumbo Frames support, Management Information Base (MIB), Quality of Service (QoS), Redundant fans, Spanning Tree Protocol (STP) support, Syslog support, Tagged VLAN, Virtual PortChannel (vPC) technology, VLAN support, Weighted Round Robin (WRR) queuing
Compliant Standards :IEEE 802.1p, IEEE 802.1Q, IEEE 802.3, IEEE 802.3ab, IEEE 802.3an, IEEE 802.3x
Ports
Qty :48
Type :Gigabit Ethernet / 10Gb Ethernet
Ports (2nd)
Qty :6
Type :40 Gigabit QSFP+
Interface Provided
Interfaces :48 x 1Gb Ethernet/10Gb Ethernet – RJ-45, 6 x 40Gb Ethernet – QSFP+
Power Device
Nominal Voltage :AC 120/230 V
Frequency Required :50/60 hertz
System Requirements
OS Required :Cisco NX-OS
Miscellaneous
Color Category :Silver
Compliant Standards :AS/NZS 60950-1, AS/NZS CISPR22:2006 Class A, CAN/CSA C22.2 No. 60950-1, CAN/CSA-C22.2 No. 60950-1, CISPR 22 Class A, CISPR 24, CNS 13438(95) Class A, Directive 2004/108/EC, Directive 2006/95/EC, EN 300386, EN 60950-1, EN 61000-3-2, EN 61000-3-3, EN 61000-6-1, EN50082-1, EN55022 Class A, EN55024, FCC CFR47 Part 15, GB 4943, ICES-003 Class A, IEC 60950-1, KN22 Class A, NEBS level 3, RoHS 6/6, UL 60950-1, VCCI Class A
Dimensions & Weight
Width :17.3 inch
Depth :17.1 inch
Height :1.7 inch
Weight :16.98 lbs
Environmental Parameters
Min Operating Temperature :32 degree Fahrenheit
Max Operating Temperature :131 degree Fahrenheit
Humidity Range Operating :5 – 95% (non-condensing)
