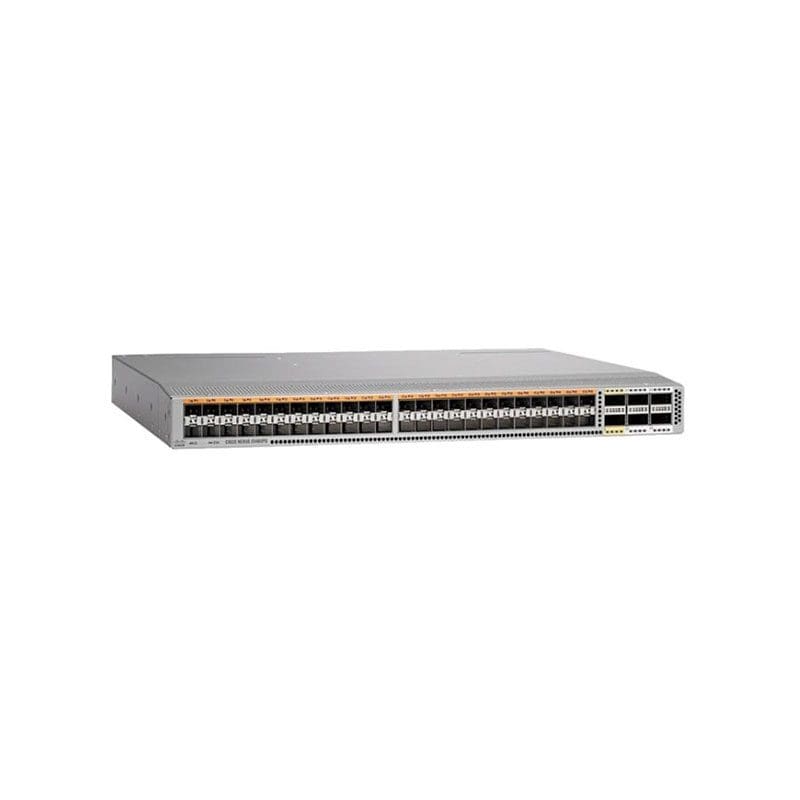

Refurbished N2K-C2348UPQ4F Cisco Nexus 2348UPQ Fabric Extender

Refurbished N2K-C2348UPQ4F Overview

The Cisco Nexus 2300 platform maintains all the existing Cisco Nexus 2000 Series features, including a single point of management, high availability with virtual PortChannels (vPC), vPC+, Enhanced vPC, and LAN and SAN convergence using Fibre Channel over Ethernet (FCoE). With the addition of true 40 Gigabit Ethernet support, deep buffers to handle bursts of traffic common in today’s data center, and unified port capability (on 2348UPQ with 5600 only starting 7.3 release), the Cisco Nexus 2300 platform is suitable for highly virtualized, automated, and cloud environments.

$2,959

Buy Now
Availability: In Stock
SKU:N2K-C2348UPQ4F-RF
Brand:

Refurbished N2K-C2348UPQ4F Technical Specifications

Cisco Nexus 2348UPQ 10GE Fabric Extender

Manufacturer Cisco Systems, Inc
Manufacturer Part Number N2K-C2348UPQ4F
Brand Name Cisco
Product Line Nexus
Product Series 2000
Product Model 2348UPQ
Product Name Nexus 2348UPQ 10GE Fabric Extender
Product Type Fabric Extender
Form Factor :Rack-mountable
Connectivity Technology :Wired
Data Link Protocol :10 Gigabit Ethernet, 40 Gigabit Ethernet, Fibre Channel over Ethernet (FCoE), Gigabit Ethernet
Network / Transport Protocol :ICMP/IP, TCP/IP, UDP/IP
Remote Management Protocol :RMON, SNMP 1, SNMP 2, SNMP 3
Status Indicators :Port status, Power, System
Features :Access Control List (ACL) support, Auto-negotiation, Flow control, Hot swappable 3 fans, Hot swappable power supply, IGMP snooping, Jumbo Frames support, Quality of Service (QoS), Spanning Tree Protocol (STP) support, Syslog support, Uplink, VLAN support, Weighted Round Robin (WRR) queuing
Compliant Standards :IEEE 802.1Q, IEEE 802.1x, IEEE 802.3, IEEE 802.3ae, IEEE 802.3x
Ports
Qty :48
Type :Gigabit Ethernet / 10 Gigabit SFP+ / SFP (mini-GBIC)
Ports (2nd)
Qty :6
Type :40 Gigabit QSFP+
Interface Provided
Interfaces :48 x 1Gb Ethernet/10Gb Ethernet – SFP/SFP+, 6 x 40Gb Ethernet – QSFP+
Power Device
Nominal Voltage :AC 120/230 V
Frequency Required :50/60 hertz
Miscellaneous
Compliant Standards :AS/NZS 60950-1, BSMI CNS 13438 Class A, CISPR 22 Class A, CISPR 24, CSA C22.2 No. 60950-1, EN 300 386, EN 60950-1, EN 61000-3-2, EN 61000-3-3, EN 61000-6-1, EN300-386, EN50082-1, EN55022 Class A, EN55024, FCC CFR47 Part 15, ICES-003 Class A, IEC 60950-1, RoHS, UL 60950-1, VCCI Class A ITE
Dimensions & Weight
Width :17.3 inch
Depth :14.1 inch
Height :1.7 inch
Weight :18.3 lbs
Environmental Parameters
Min Operating Temperature :32 degree Fahrenheit
Max Operating Temperature :104 degree Fahrenheit
Humidity Range Operating :5 – 95% (non-condensing)
