Refurbished N3K-C3064-X-BD-L3 Technical Specifications

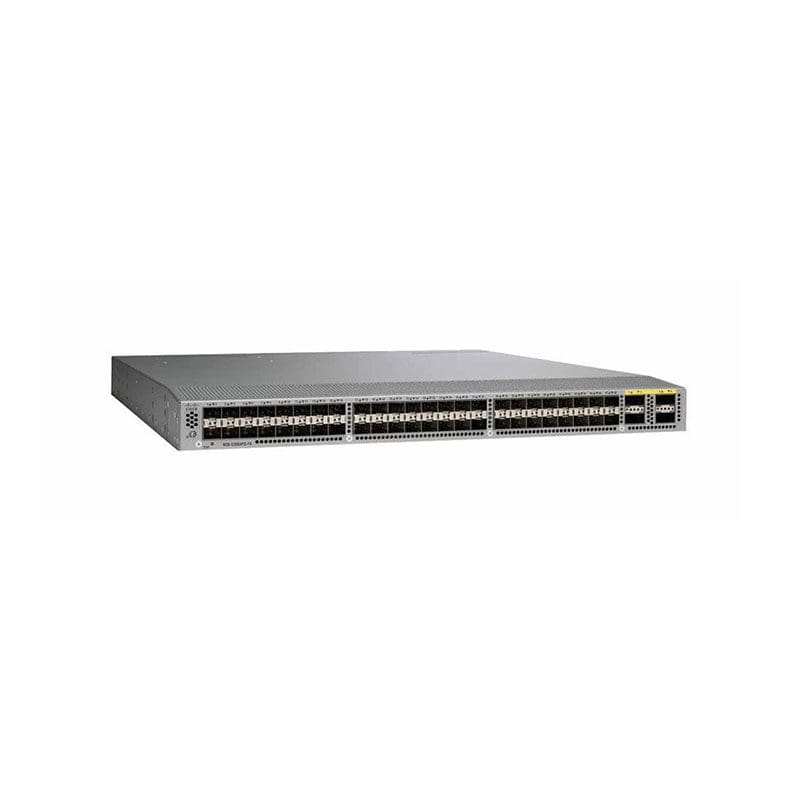

Cisco Nexus 3064-X Switch
Manufacturer :CISCO DS HARDWARE DIRECT
Brand :Cisco
Product Line :Cisco Nexus
Model :3064-X Reversed Airflow Base and LAN Enterprise License Bundle
Packaged Quantity :1
Performance
Performance :Forwarding performance: 960 Mpps, Switching capacity: 1.28 Tbps
Capacity
Capacity :Multiple Spanning Tree Protocol instances: 64, Rapid Spanning Tree Protocol instances: 512, Virtual interfaces (VLANs): 4096
Networking
Type :Switch
Subcategory :Network hubs and switches
Subtype :10 Gigabit Ethernet
Form Factor :Rack-mountable
Ports Qty :64
MAC Address Table Size :128K entries
Jumbo Frame Support :9216 bytes
Manageable :Yes
Remote Management Protocol :CLI, RMON, SNMP 1, SNMP 2, SNMP 3, SSH-2, Telnet
Features :Broadcast Storm Control, DHCP snooping, Jumbo Frames support, Layer 2 switching, Multicast Storm Control, Multiple Spanning Tree Protocol (MSTP) support, Quality of Service (QoS), Rapid Per-VLAN Spanning Tree Plus (PVRST+), Rapid Spanning Tree Protocol (RSTP) support, Syslog support, Unicast Storm Control, VLAN support, Weighted Random Early Detection (WRED)
Compliant Standards :IEEE 802.1ab (LLDP), IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ad (LACP), IEEE 802.3ae, IEEE 802.3z
Ports
Qty :48
Type :SFP+
Ports (2nd)
Qty :4
Type :QSFP+
Interface Provided
Interfaces :1 x console RJ-45 management, 1 x USB, 2 x 1000Base-T RJ-45 management, 4 x QSFP+, 48 x SFP+
Software
Type :Cisco NX-OS Layer 3 Base Services, Cisco NX-OS Layer 3 Enterprise Services
Power Device
Type :Internal power supply
Hot-Plug :Hot-plug
Power Redundancy :Yes
Installed Qty :2
Max Supported Qty :2
Miscellaneous
Height (Rack Units) :1
Encryption Algorithm :AES
Authentication Method :MS-CHAP, RADIUS, Secure Shell v.2 (SSH2), TACACS+
Compliant Standards :AS/NZS 60950-1, BSMI CNS 13438 Class A, CISPR 22 Class A, CISPR 24, CSA C22.2 No. 60950-1, EN 300 386, EN 60950-1, EN 61000-3-2, EN 61000-3-3, EN300-386, EN55022 Class A, EN55024, FCC CFR47 Part 15, GB 4943, ICES-003 Class A, IEC 60950-1, RoHS 5/6, UL 60950-1 Second Edition, VCCI Class A ITE
Dimensions & Weight
Width :17.3 inch
Depth :19.9 inch
Height :1.7 inch
Weight :20.5 lbs
Environmental Parameters
Min Operating Temperature :32 degree Fahrenheit
Max Operating Temperature :104 degree Fahrenheit
Min Storage Temperature :-40 degree Fahrenheit
Max Storage Temperature :158 degree Fahrenheit
Humidity Range Operating :10 – 85% (non-condensing)
Humidity Range Storage :5 – 95% (non-condensing)
