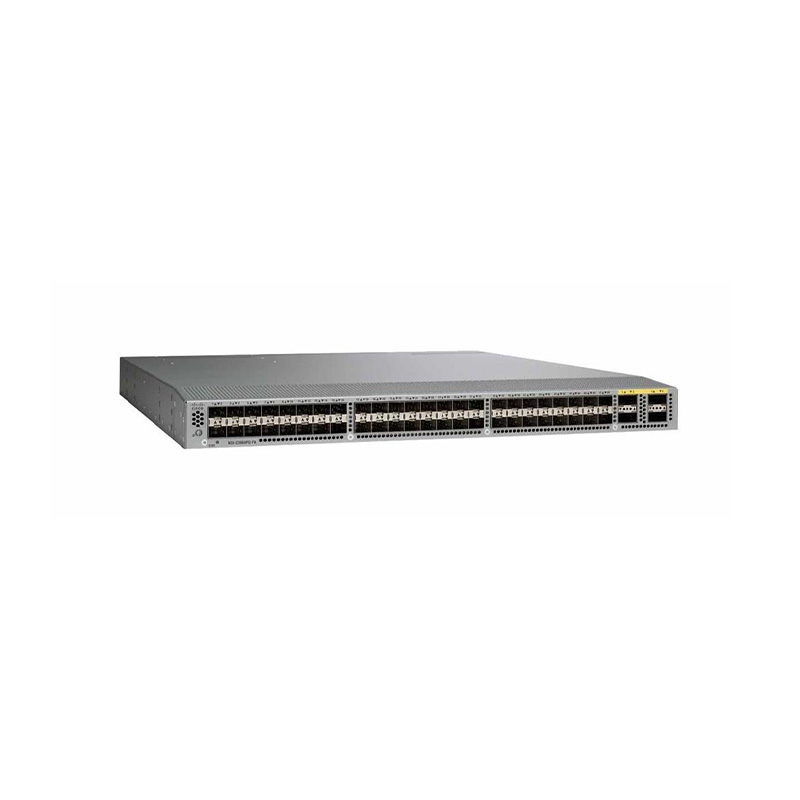

N3K-C3064-X-ZM-2B Cisco Nexus 3064-X Layer 3 Switch
N3K-C3064-X-ZM-2B Overview
The Cisco N3K-C3064-X-ZM-2B is a high-density Nexus 3064-X Layer 3 switch designed for performance-intensive data centers and cloud deployments. With 48 × 10 Gigabit Ethernet SFP+ ports and 4 × 40 Gigabit QSFP+ uplinks, it delivers a flexible mix of server access and high-bandwidth uplink capacity. Built to handle demanding workloads, it offers a total switching capacity of 1.28 Tbps and forwarding rates up to 950 Mpps, with ultra-low latency ideal for high-frequency trading, HPC clusters, and latency-sensitive enterprise applications. Its Layer 3 capabilities support advanced routing, VXLAN, multicast, QoS, and ACLs, ensuring both scalability and efficient traffic management.
N3K-C3064-X-ZM-2B Technical Specifications
Cisco Nexus 3064-X Layer 3 Switch
Manufacture: Cisco
Manufacture Part Number: N3K-C3064-X-ZM-2B
Series: Nexus 3000 Series (3064-X)
Form Factor: 1U Rack-mountable
Total Ports: 48 × 10 Gigabit Ethernet (SFP+)
Expansion Ports: 4 × 40 Gigabit Ethernet (QSFP+) uplinks
Switching Capacity: Up to 1.28 Tbps throughput
Forwarding Rate: Up to 950 Mpps
Latency: Ultra-low latency (sub-microsecond)
Management: Layer 3 Managed
Features: VXLAN, QoS, ACLs, multicast, advanced routing
Security: Policy-based control, access restrictions
Reliability: Redundant fans and power supply support
