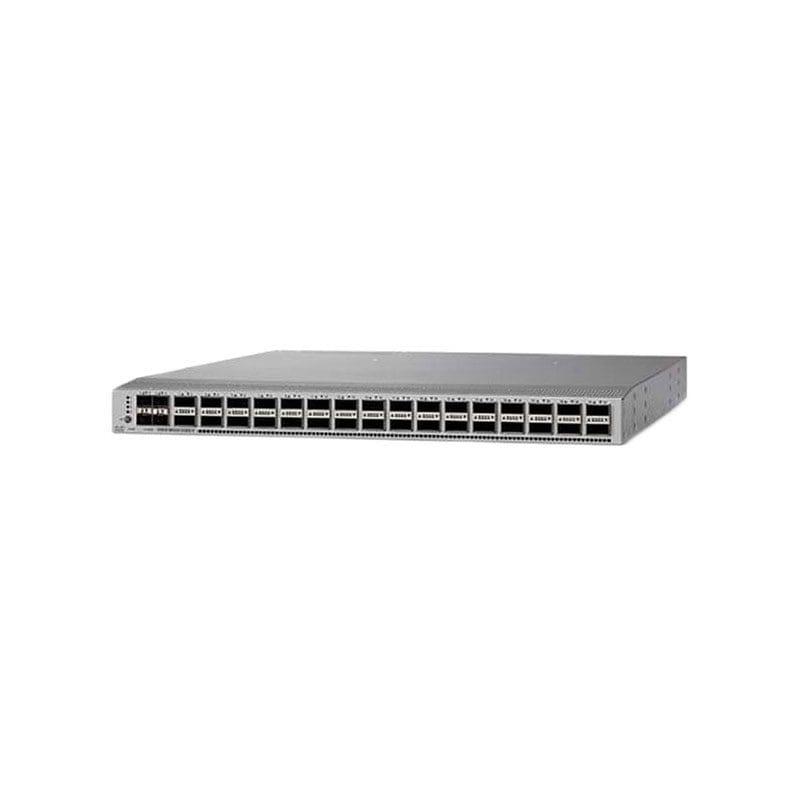

Refurbished N3K-C3132Q-V Cisco Nexus 3000 Series
Refurbished N3K-C3132Q-V Overview
N3K-C3132Q-V is the Nexus 3132Q-V, 32 QSFP+ ports. The Cisco Nexus 3100-V switch platform is the latest addition to the industry’s widely deployed Cisco Nexus 3100 platform. The Cisco Nexus 3100-V platform consists of high-density, low-power-consumption, and low-latency fixed-configuration data center switches with line-rate Layer 2 and 3 features that support enterprise applications, service provider hosting, High-Performance Computing (HPC), and cloud computing environments. These switches support a wide range of port speeds with flexible combinations of 1/10/40/100-Gbps connectivity with improved port density and scalability in compact 1-rack-unit (1RU) form factors.
$6,775
Buy NowRefurbished N3K-C3132Q-V Technical Specifications
Cisco Nexus 3000 Series 32 QSFP+ port Switch
Product Line Cisco Nexus
Product Series N3K
Device Type: Switch – 32 ports – L3 – Managed
Enclosure Type: Rack-mountable 1U
Subtype: 40 Gigabit Ethernet
Ports: 32 x QSFP+
Performance Switching capacity: 2.56 Tbps
Forwarding performance: 1.4 Bpps
Capacity Virtual interfaces (VLANs): 4096
Multiple Spanning Tree Protocol instances: 64
Rapid Spanning Tree Protocol instances: 512
MAC addresses: 288000
ACL entries (egress): 1000
ACL entries (ingress): 16000
Jumbo Frame Support 9216 bytes
Routing Protocol RIP-2, BGP, EIGRP, VRRP, OSPFv2, PIM-SM, static IP routing, PIM-SSM, MSDP, policy-based routing (PBR)
Remote Management Protocol SNMP 1, SNMP 2, RMON, Telnet, SNMP 3, SSH-2, CLI
Authentication Method Secure Shell (SSH)
Features DHCP support, VLAN support, Syslog support, Multicast Storm Control, Unicast Storm Control, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, Access Control List (ACL) support, EIGRP Stub Routing, Equal-Cost Multipath (ECMP), LACP support, LLDP support, Hot Standby Router Protocol (HSRP) support, redundant hot swappable fans, redundant fans, Multicast Source Discovery Protocol (MSDP), 16MB packet buffer, Virtual PortChannel (vPC) technology, Virtual Extensible LAN (VXLAN), Open Shortest Path First (OSPF), Source-Specific Multicast (SSM), Ethernet Virtual Private Network (EVPN), side intake airflow, Power On Auto Provisioning (POAP)
Compliant Standards IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 1588-2008
Expansion / Connectivity
Interfaces 32 x 40Gbit LAN QSFP+
4 x 10GBase-X SFP+
1 x 1000Base-T RJ-45 management
1 x serial (RS-232)
1 x USB
Power
Power Device Internal power supply – hot-plug
Installed Qty 2 (installed) / 2 (max)
Voltage Required AC 120/230 V (50/60 Hz)
Power Consumption Operational 170 Watt
Miscellaneous
Cables Included 2 x power cable
Compliant Standards CISPR 22 Class A, BSMI CNS 13438 Class A, CISPR 24, EN 61000-3-2, EN 61000-3-3, EN55024, EN55022 Class A, AS/NZS 60950-1, ICES-003 Class A, RoHS, UL 60950-1 Second Edition, FCC CFR47, CSA C22.2 No. 60950-1 Second Edition, EN 60950-1 Second Edition, IEC 60950-1 Second Edition, VCCI Class A, KN24, GB 49493, KN22 Class A, EN 300386
Dimensions & Weight
Width 43.9 cm
Depth 50.5 cm
Height 4.4 cm
Weight 8.5 kg
