Refurbished N3K-C3164Q-40GE Cisco Nexus 3164Q Switch
Refurbished N3K-C3164Q-40GE Overview

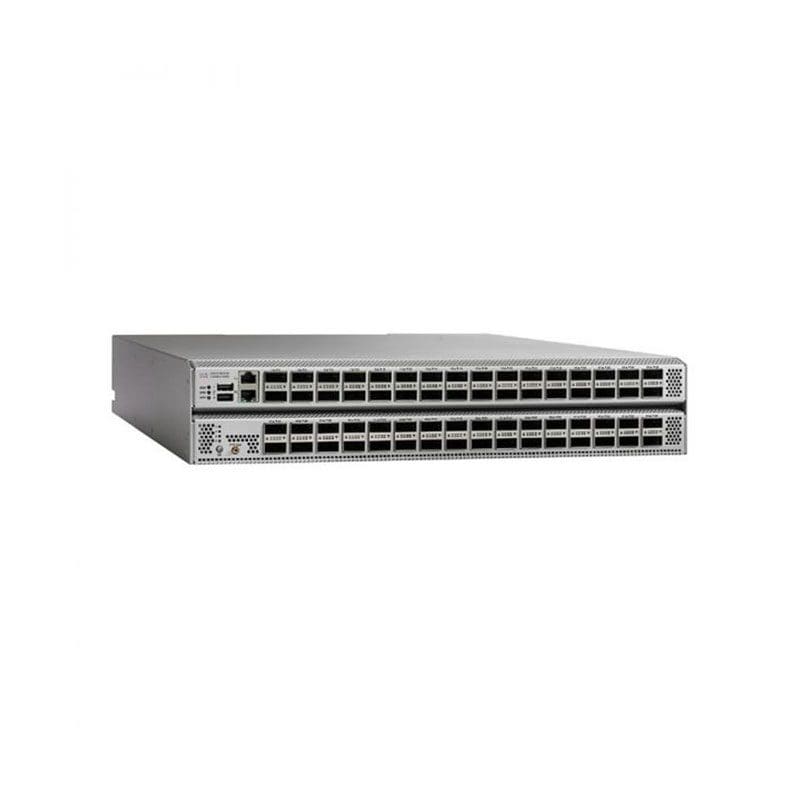

The Cisco Nexus® 3164Q Switch is an ultra-high density, power efficient, 10/40-Gbps switch designed for the data center. This compact, two-rack-unit (2RU) model offers wire-rate Layer 2 and Layer 3 switching on all ports. It runs the enhanced version of the Cisco® NX-OS Software operating system , that also supports Nexus 9000 series switches. It provides customer comprehensive features while simplifying image management. The rich programmability features enable organizations to run today’s applications while also being prepared for the demanding and changing application needs such as big data, cloud, and virtualization.
$1,275
Buy NowRefurbished N3K-C3164Q-40GE Technical Specifications
Cisco Nexus 3164Q Switch
Manufacturer Cisco Systems, Inc
Manufacturer Part Number N3K-C3164Q-40GE
Brand Name Cisco
Product Line Nexus
Product Series 3000
Product Model 3164Q
Product Name Nexus 3164Q Switch
Product Type Layer 3 Switch
Technical Information−
Interfaces/Ports
Token Ring Port No
LRE Port No
Management Port Yes
USB Yes
Port/Expansion Slot Details 64 x 40 Gigabit Ethernet Expansion Slot
Media & Performance
Media Type Supported Optical Fiber
Ethernet Technology 40 Gigabit Ethernet
Network Technology 40GBase-X
I/O Expansions
Number of Total Expansion Slots 64
Expansion Slot Type QSFP+
Network & Communication
Layer Supported 3
Management & Protocols
Manageable Yes
Management
SNMP v1, v2, v3
DHCP
CLI
SSH
NTP
XML
RCP
SCP
Telnet
RMON
Syslog
Memory
Standard Memory 16 GB
Power Description
PoE (RJ-45) Port No
Input Voltage 120 V AC, 230 V AC
Power Source Power Supply
Redundant Power Supply Supported Yes
Physical Characteristics
Compatible Rack Unit 2U
Form Factor Desktop, Rack-mountable
Height 3.5″
Width 17.4″
Depth 22.3″
Weight (Approximate) 37 lb
Miscellaneous
Certifications & Standards
IEEE Standards:
802.1D Bridging and Spanning Tree
802.1p QoS/CoS
802.1Q VLAN Tagging
802.1w Rapid Spanning Tree
802.1s Multiple Spanning Tree Protocol
802.1AB Link Layer Discovery Protocol
802.3ad Link Aggregation with LACP
802.3ab 1000BASE-T
802.3z Gigabit Ethernet
802.3ae 10 Gigabit Ethernet
802.3ba 40 Gigabit Ethernet
Safety:
UL 60950-1 Second Edition
CAN/CSA-C22.2 No. 60950-1 Second Edition
EN 60950-1 Second Edition
IEC 60950-1 Second Edition
AS/NZS 60950-1
GB4943
EMC: Emissions/Immunity
47CFR Part 15 (CFR 47) Class A
AS/NZS CISPR22 Class A
CISPR22 Class A
EN55022 Class A
ICES003 Class A
VCCI Class A
EN61000-3-2
EN61000-3-3
KN22 Class A
CNS13438 Class A
EN55024
CISPR24
EN300386
KN24
Environmentally Friendly Yes
Environmental Certification RoHS-5
