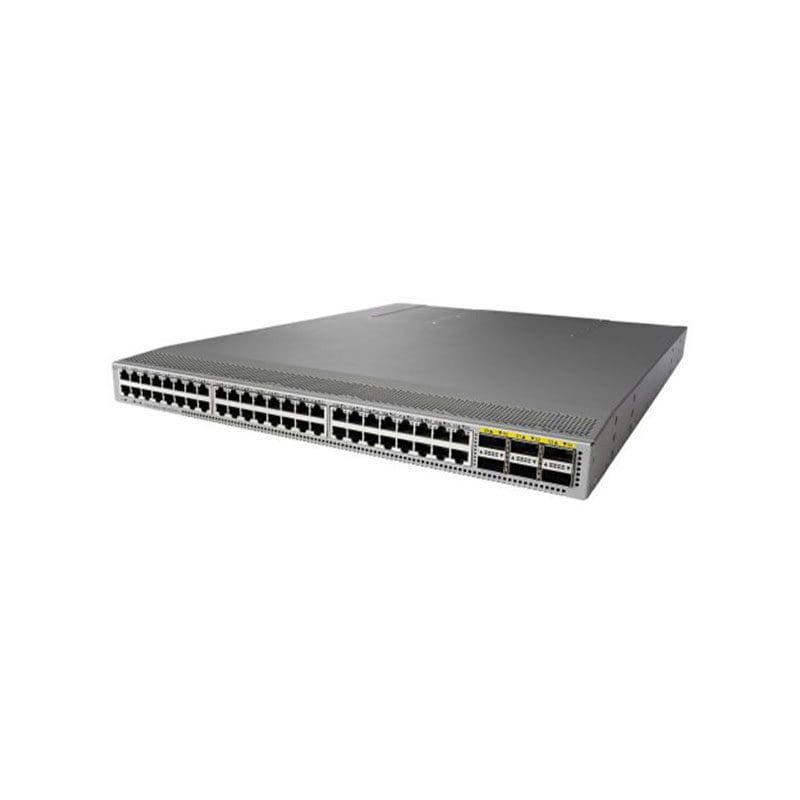

Refurbished N3K-C3172TQ-10GT Cisco Nexus 3172TQ Layer 3 Switch
Refurbished N3K-C3172TQ-10GT Overview
The Cisco Nexus® 3172PQ and 3172TQ Switches are dense, high-performance Layer 2 and 3, 10- and 40-Gbps switches that are members of the Cisco Nexus 3100 switch platform. Both switches offer improved port density and scalability in compact one-rack-unit (1RU) form factors. These Cisco Nexus 3172 switches run the industry-leading Cisco® NX-OS Software operating system that helps ensure continuous availability and sets the standard for mission-critical data center environments. They are well suited for data centers that require cost-effective, power-efficient line-rate Layer 2 and 3 top-of-rack (ToR) switches. Both also support forward and reverse airflow schemes (port-side exhaust and port-side intake) with AC and DC power inputs.
$1,610
Buy NowRefurbished N3K-C3172TQ-10GT Technical Specifications
Cisco Nexus 3172TQ Layer 3 Switch
Manufacturer Cisco Systems, Inc
Manufacturer Part Number N3K-C3172TQ-10GT
Brand Name Cisco
Product Line Nexus
Product Series 3000
Product Model 3172TQ
Product Name Nexus 3172TQ Layer 3 Switch
Product Type Layer 3 Switch
Technical Information−
Interfaces/Ports
Total Number of Network Ports 48
Token Ring Port No
LRE Port No
Uplink Port No
Bypass No
Modular No
Management Port Yes
USB Yes
Stack Port No
Number of Network (RJ-45) Ports 48
Port/Expansion Slot Details 48 x 10 Gigabit Ethernet Network, 6 x 40 Gigabit Ethernet Expansion Slot
Media & Performance
Media Type Supported Twisted Pair
Ethernet Technology 10 Gigabit Ethernet
Network Technology 10GBase-T
I/O Expansions
Number of Total Expansion Slots 6
Expansion Slot Type QSFP+
Shared SFP Slot No
Network & Communication
Layer Supported 3
Management & Protocols
Manageable Yes
Management
SNMP v1/v2/v3
Telnet
RMON
CLI
sFlow
DHCP
Syslog
Web Based Managment
VLAN
QoS
MIB
Memory
Flash Memory 2 GB
Power Description
PoE (RJ-45) Port No
Input Voltage 110 V AC, 220 V AC
Power Source Power Supply
Redundant Power Supply Supported Yes
Physical Characteristics
Compatible Rack Unit 1U
Form Factor Rack-mountable
Height 1.7″
Width 19.7″
Depth 17.3″
Weight (Approximate) 22 lb
Miscellaneous
Certifications & Standards IEEE Standards:
802.1D
802.1p
802.1Q
802.1s
802.1w
802.3z
802.3ad
802.3ae
802.3ba
802.3an
802.1ab
Safety:
UL 60950-1 Second Edition
CAN/CSA-C22.2 No. 60950-1 Second Edition
EN 60950-1 Second Edition
IEC 60950-1 Second Edition
AS/NZS 60950-1
GB4943
Emissions:
47CFR Part 15 (CFR 47) Class A
AS/NZS CISPR22 Class A
CISPR22 Class A
EN55022 Class A
ICES003 Class A
VCCI Class A
EN61000-3-2
EN61000-3-3
KN22 Class A
CNS13438 Class A
Immunity:
EN55024
CISPR24
EN300386
KN24
Environmentally Friendly Yes
Environmental Certification RoHS-5
