N3K-C36180YC-R Technical Specifications
Nexus 36180YC-R, 48p 10/25G and 6p QSFP28
Product Line Cisco Nexus
product Series N3k
Product Description

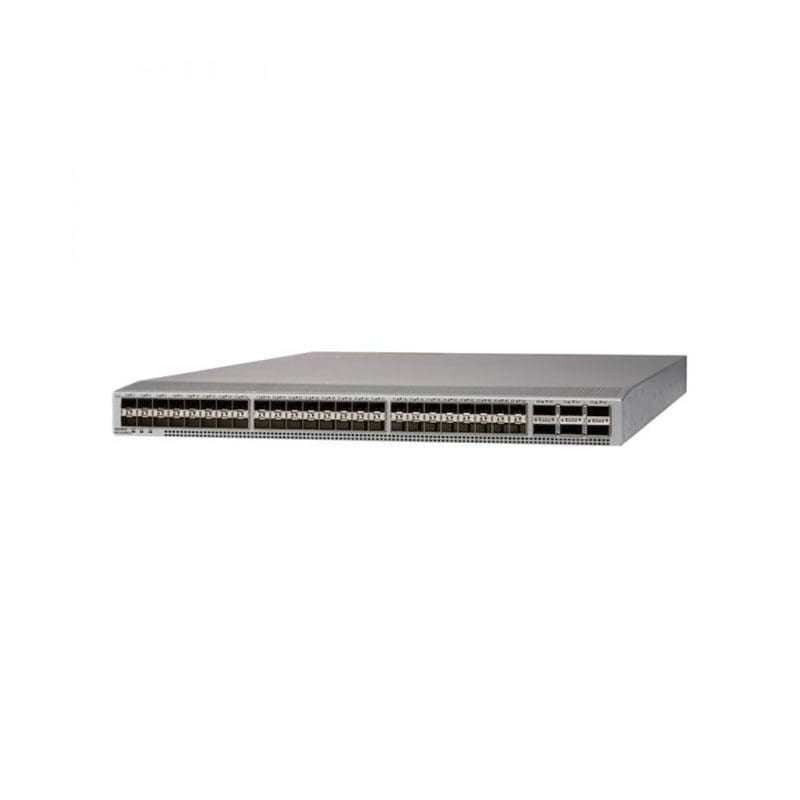

Cisco Nexus 36180YC-R – switch – managed – rack-mountable
Device Type
Switch – L3 – managed
Enclosure Type
Rack-mountable 1U
Ports
48 x 1/10/25 Gigabit SFP+ + 6 x 40/100 Gigabit QSFP28
Performance
Switching capacity: 1.8 Tbps ¦ Forwarding rate: up to 1.67 bbps
Capacity
Maximum transmission unit (MTU) (bytes): 9216 ¦ VLANs supported: 4096 ¦ Rapid Spanning Tree Protocol instances: 512 ¦ Multiple Spanning Tree Protocol instances: 64 ¦ ACL entries (ingress): 7000 ¦ Longest prefix match (LPM) routes: 256000 ¦ IP host entries: 750000 ¦ Multicast entries (Layer 3): 128000 ¦ EtherChannels (with vPC): 256 ¦ Ports per EtherChannel: 32
