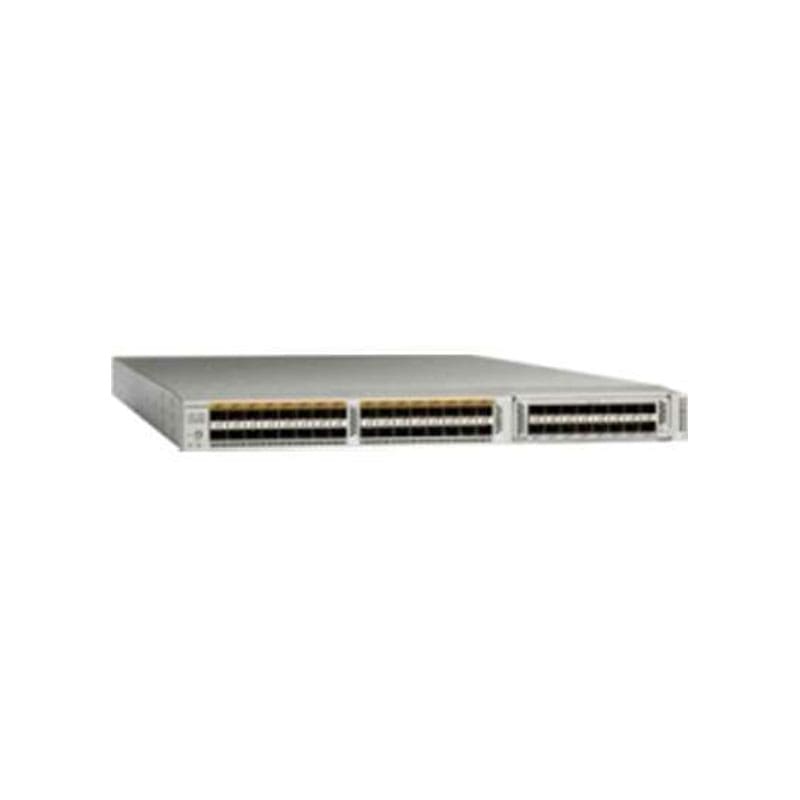

N5548UPM-6N2248TP Cisco Nexus Switch 48 ports Rack-mountable
N5548UPM-6N2248TP Overview
The switch series, using cut-through architecture, supports line-rate 10 Gigabit Ethernet on all ports while maintaining consistently low latency independent of packet size and services enabled. It supports a set of network technologies known collectively as Data Center Bridging (DCB) that increases the reliability, efficiency, and scalability of Ethernet networks. These features allow the switches to support multiple traffic classes over a lossless Ethernet fabric, thus enabling consolidation of LAN, SAN, and cluster environments. Its ability to connect Fiber Channel over Ethernet (FCoE) to native Fiber Channel protects existing storage system investments while dramatically simplifying in-rack cabling.
$53,429
Buy NowN5548UPM-6N2248TP Technical Specifications
Cisco Nexus 5548UP Switch 48 ports Managed Rack-mountable With 6 x Cisco Nexus 2248TP GE Fabric Extender
Manufacturer Part Number: N5548UPM-6N2248TP
Product Type: Switch Chassis
Manageable: Yes
Number of Total Expansion Slots: 33
Product Family: Nexus 5000
PoE (RJ-45) Port: No
Redundant Power Supply Supported: Yes
Expansion Slot Type: SFP+
Form Factor: Rack-mountable
Power Source: Power Supply
Layer Supported: 3
Environmentally Friendly: Yes
Compatible Rack Unit: 1U
Number of SFP+ Slots: 32
Port / Expansion Slot Details: 32 x 10 Gigabit Ethernet Expansion Slot
Height: 1.7″
Width: 17.3″
Depth: 29.5″
Product Series: 5000
Product Model: 5548UP
Network Technology: 10/100/1000Base-T
Product Line: Nexus
Token Ring Port: No
LRE Port: No
USB: Yes
