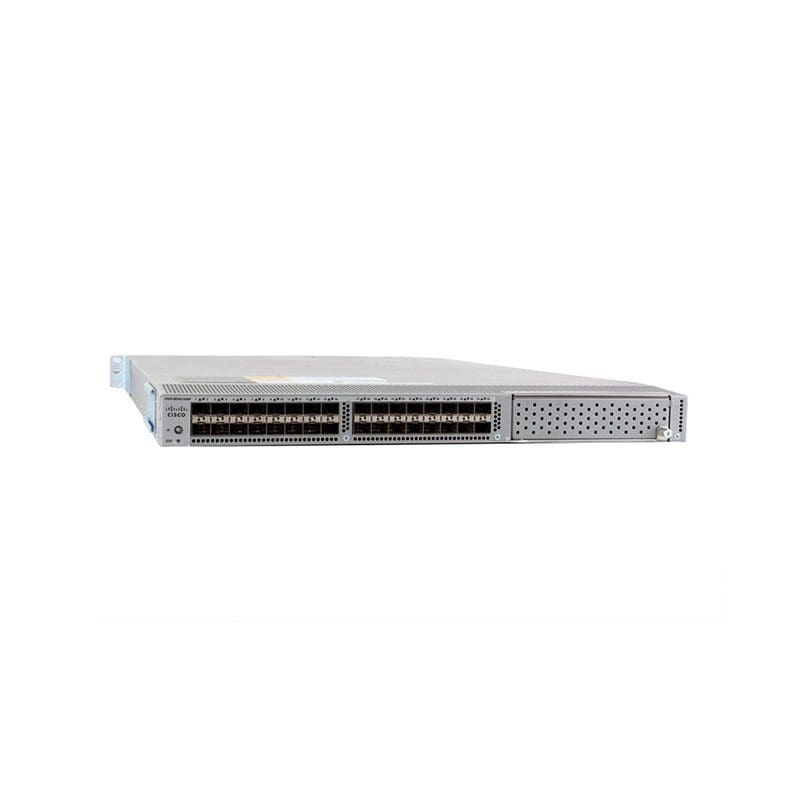

Refurbished N5K-C5548UP-B-S32 Technical Specifications
Cisco Nexus 5548UP Storage Solutions Bundle switch
Brand :Cisco
Product Line :Cisco Nexus
Model :5548UP Storage Solutions Bundle
Bundled with :8x Cisco MDS 9000 Family 2/4/8-Gbps Fibre Channel-Shortwave, SFP+, LC (DS-SFP-FC8G-SW)
Packaged Quantity :1
RAM
Installed Size :8 GB
Flash Memory
Installed Size :2 GB, 2 GB
Performance
Performance :Forwarding performance: 960 Gbps
Networking
Type :Switch
Subcategory :Network hubs and switches
Subtype :10 Gigabit Ethernet
Form Factor :Rack-mountable
Ports Qty :32
MAC Address Table Size :32K entries
Jumbo Frame Support :9216 bytes
Manageable :Yes
Remote Management Protocol :CLI, RMON, SNMP 1, SNMP 2, SNMP 3, SSH-2, Telnet
Features :Access Control List (ACL) support, Broadcast Storm Control, DHCP snooping, Jumbo Frames support, Layer 2 switching, Multicast Storm Control, Multiple Spanning Tree Protocol (MSTP) support, Quality of Service (QoS), Rapid Per-VLAN Spanning Tree Plus (PVRST+), Syslog support, Unicast Storm Control, VLAN support, Weighted Round Robin (WRR) queuing
Compliant Standards :IEEE 801.1p, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.3, IEEE 802.3ad (LACP), IEEE 802.3ae, IEEE 802.3x
Ports
Qty :32
Type :SFP+
Expansion Slots
Expansion Slots :1 (total) / 1 (free) x expansion slot
Interface Provided
Interfaces :1 x 1000Base-T RJ-45 management, 1 x console management, 32 x SFP+
Power Device
Type :Internal power supply
Hot-Plug :Hot-plug
Power Redundancy :Yes
Power Redundancy Scheme :1+1
Installed Qty :2
Nominal Voltage :AC 120/230 V
Frequency Required :50/60 hertz
Power Consumption Operational :600 watt
Miscellaneous
Height (Rack Units) :1
Encryption Algorithm :AES
Authentication Method :MS-CHAP, RADIUS, TACACS+
MTBF :98,335 Hours
Dimensions & Weight
Width :17.3 inch
Depth :29.5 inch
Height :1.7 inch
Environmental Parameters
Min Operating Temperature :32 degree Fahrenheit
Max Operating Temperature :104 degree Fahrenheit
Min Storage Temperature :104 degree Fahrenheit
Max Storage Temperature :158 degree Fahrenheit
Humidity Range Operating :5 – 95% (non-condensing)
