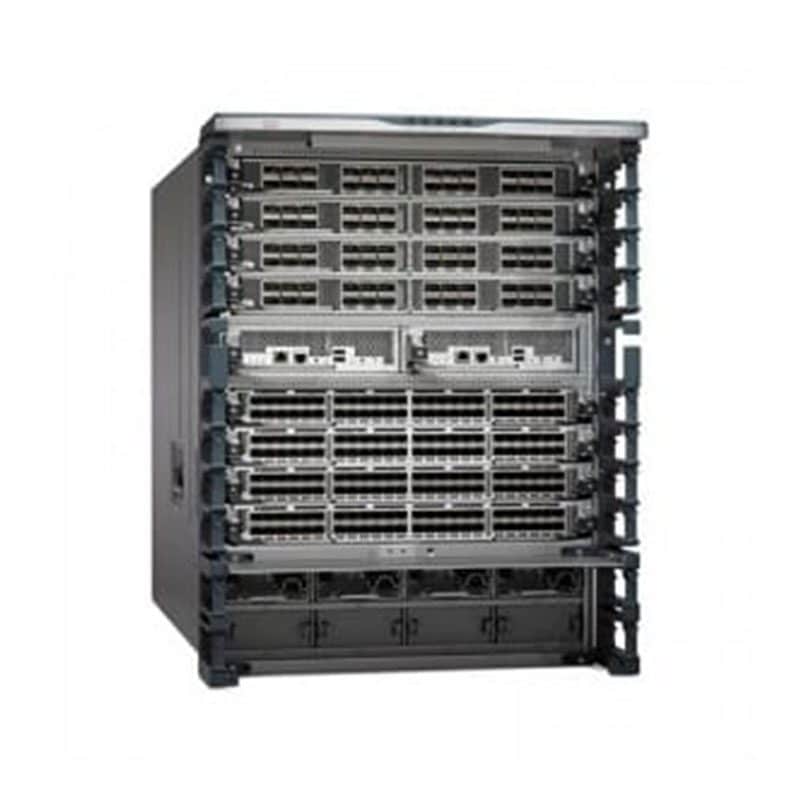

Refurbished N77-C7710-B23S2E-R Cisco Nexus 7710 Bundle switch

Refurbished N77-C7710-B23S2E-R Overview

The Cisco Nexus 7710 chassis has 10 slots for two supervisor modules and up to eight I/O modules. The chassis also holds up to six fabric modules, up to eight AC or DC 3-kW power supplies, and three fan trays. To group the many networking cables for each I/O module on this chassis, you can install cable management frames on either side of the chassis. You can install an optional locking front door and you can install an optional set of air filters on the front door and cable management frames. The following figure shows the standard hardware features seen from the front of the chassis.

Availability: In Stock
SKU:N77-C7710-B23S2E-R-RF
Brand:

Refurbished N77-C7710-B23S2E-R Technical Specifications

Cisco Nexus 7710 Bundle switch

Brand :Cisco
Product Line :Cisco Nexus
Model :7710
Kit :Bundle
Bundled with :2 x Cisco Nexus 7000 Series Supervisor 2 Enhanced Module, 3x Cisco Nexus 7000 Series Fabric-2 Module
Packaged Quantity :1
Chassis
Installed Devices / Modules Qty :5
Supported Devices / Modules Qty :16
Processor
Type :Xeon
Installed Qty :4
Manufacturer :Intel
Clock Speed :2.13 GHZ
RAM
Technology :DDR3 SDRAM
Installed Size :64 GB
Flash Memory
Installed Size :32 GB, 32 GB
Networking
Type :Switch
Subcategory :Network hubs and switches
Form Factor :Rack-mountable
Advanced Switching :Layer 3
Routing Protocol :IGMP
Manageable :Yes
Remote Management Protocol :CLI, SNMP 1, SNMP 2c, SNMP 3
Features :Layer 2 switching, Layer 3 switching, Modular design, Spanning Tree Protocol (STP) support
Expansion Slots
Expansion Slots :10 (total) / 8 (free) x expansion slot, 6 (total) / 3 (free) x fabric module slot
Interface Provided
Interfaces :2 x management (Gigabit LAN) 10Base-T/100Base-TX/1000Base-T – RJ-45 – RJ-45, Serial: 2 x serial (console) console – RJ-45 – RJ-45, USB: 4 x USB
Power Device
Type :Internal power supply
Hot-Plug :Hot-plug
Power Redundancy :Optional
Installed Qty :0
Max Supported Qty :8
Miscellaneous
Height (Rack Units) :14
Compliant Standards :AS/NZS 60950, BSMI CNS 13438 Class A, CAN/CSA C22.2 No. 60950-1, CAN/CSA-C22.2 No. 60950-1, CISPR 22 Class A, CISPR 24, EMC, EN 300 386, EN 55022 Class A, EN 60950-1, EN 61000-3-2, EN 61000-3-3, EN 61000-6-1, EN300-386, EN55022 Class A, EN55024, ETSI, FCC Class A certified, GR-1089-CORE, GR-63-CORE, ICES-003 Class A, IEC 60950-1, KN22, NEBS level 3, UL 60950-1, VCCI Class A
Dimensions & Weight
Width :17.3 inch
Depth :34 inch
Height :24.4 inch
Environmental Parameters
Min Operating Temperature :32 degree Fahrenheit
Max Operating Temperature :104 degree Fahrenheit
Min Storage Temperature :-40 degree Fahrenheit
Max Storage Temperature :158 degree Fahrenheit
Humidity Range Operating :5 – 90% (non-condensing)
Humidity Range Storage :5 – 95% (non-condensing)
