N785-I01-SFP-DU Technical Specifications

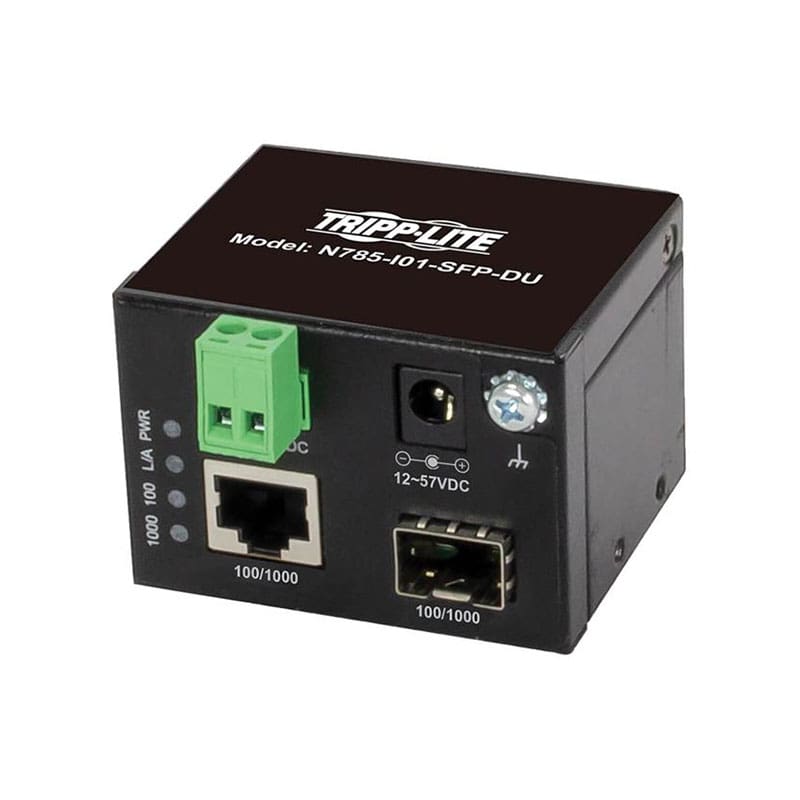

Tripp Lite Unmanaged Industrial Gigabit Fiber Media Converter
Brand: Tripp Lite
Product Line: Tripp Lite
Model
Unmanaged Industrial Gigabit Copper to Fiber Media Converter – 10/100/1000 Mbps, RJ45/SFP, -40° to 75°C, DC Power
Manufacturer
Tripplite Cables
Network & Communication
Cable Type
Ethernet 1000Base-T, Ethernet 1000Base-X, Ethernet 100Base-TX, Ethernet 10Base-T
Compliant Standards
IEEE 802.3ab, IEEE 802.3u, IEEE 802.3z
Connectivity Technology
Wired
Data Link Protocols
Ethernet, Fast Ethernet, Gigabit Ethernet
Features
Auto-uplink (auto MDI/MDI-X), Metal housing
Form Factor
DIN rail mountable
Product Type
Fiber media converter
Status Indicators
Status
Connectivity
Interface Provided
1 x Ethernet 1000Base-X – SFP female, 1 x Ethernet 10Base-T/100Base-TX/1000Base-T – RJ-45
Cables
Left Connector SD Type
RJ-45
Right Connector Type (SD)
SFP (mini-GBIC)
Technical Information
Max Operating Temperature
167 degree Fahrenheit
Min Operating Temperature
-40 degree Fahrenheit
Operating Humidity
10 – 95% (non-condensing)
Product Information
Mounting Kit
Included
Packaged Quantity
1
Included Items
Included Accessories
2 x connector caps, DIN-rail mounting kit
Dimensions & Weight
Height
2 inch
Weight
6.74 ounce
Width
1.7 inch
Depth
2.4 inch
Physical Characteristics
Color
Black
Color Category
Black
Certifications & Listings
Compliant Standards
FCC, IP30, RoHS
ENERGY STAR Certified
No
TAA Compliant
Yes
Service & Support
Service & Support Details
Limited warranty – 2 years
Limited Warranty
2-year warranty
