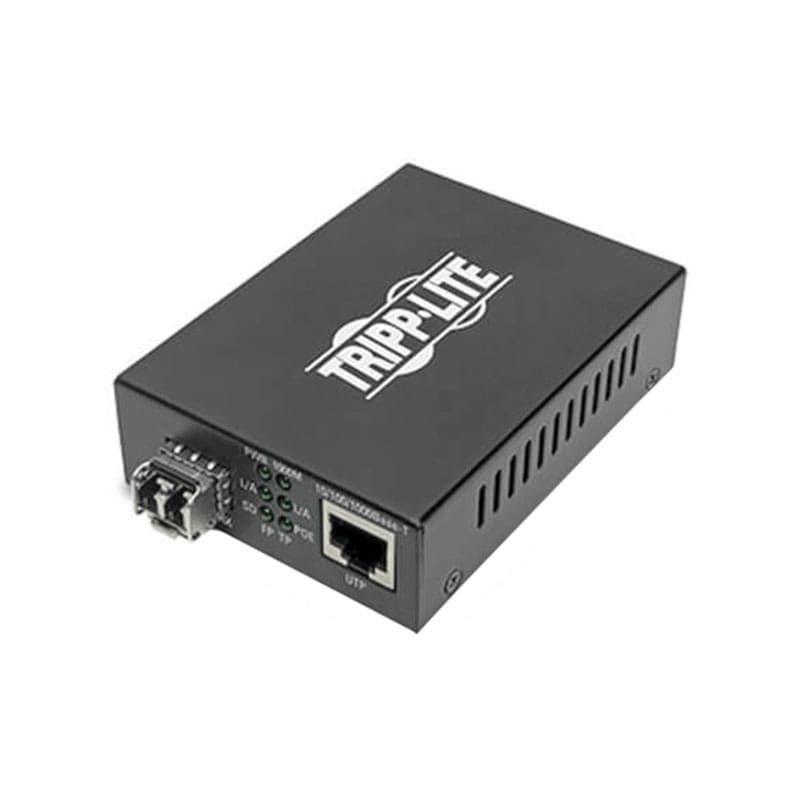

N785-P01-LC-MM1 Tripp Lite Gigabit Multimode Media Converter

N785-P01-LC-MM1 Technical Specifications

Tripp Lite Gigabit Multimode Media Converter

Brand: Tripp Lite
Product Line: Tripp Lite
Model: Gigabit Multimode Fiber to Ethernet Media Converter, POE+ – 10/100/1000 LC, 850 nm, 550 m (1804 ft.)
Manufacturer: Tripp lite Cables

Network & Communication
Cable Type
Ethernet 1000Base-T, Ethernet 100Base-TX, Ethernet 10Base-T
Compliant Standards
IEEE 802.3af, IEEE 802.3at
Connectivity Technology
Wired
Data Link Protocols
Ethernet, Fast Ethernet, Gigabit Ethernet
Data Transfer Rate
1 GBps
Features
Auto-uplink (auto MDI/MDI-X), Full duplex mode, Half duplex mode, Link Fault Pass Through function (LFP)
Form Factor
External
Max Transfer Distance
1800 ft
Optical Wave Length
850 nm
Power Over Ethernet (PoE)
PoE+
Product Type
Fiber media converter
Status Indicators
PoE, Port transmission speed, Power

Connectivity
Interface Provided
1 x Ethernet 1000 – LC multi-mode female x 2, 1 x Ethernet 10Base-T/100Base-TX/1000Base-T (PoE+) – RJ-45

Power
Frequency
50/60 hertz

Cables
Left Connector SD Type
RJ-45
Right Connector Type (SD)
LC multi-mode

Technical Information
Max Operating Temperature
140 degree Fahrenheit
Min Operating Temperature
-4 degree Fahrenheit
Operating Humidity
5 – 90% (non-condensing)

Product Information
Country
North America
Device Type
External power adapter
Packaged Quantity
1

Dimensions & Weight
Height
1 inch
Weight
7.05 ounce
Width
3.7 inch
Depth
2.8 inch

Physical Characteristics
Color
Black
Color Category
Black

Certifications & Listings
ENERGY STAR Certified
No

Service & Support
Service & Support Details
Limited warranty – 2 years
Limited Warranty
2-year warranty
