Refurbished N7K-C7009 Technical Specifications

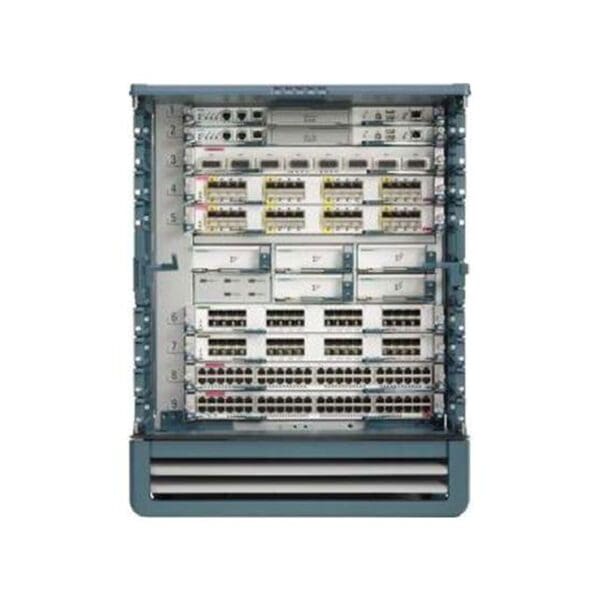

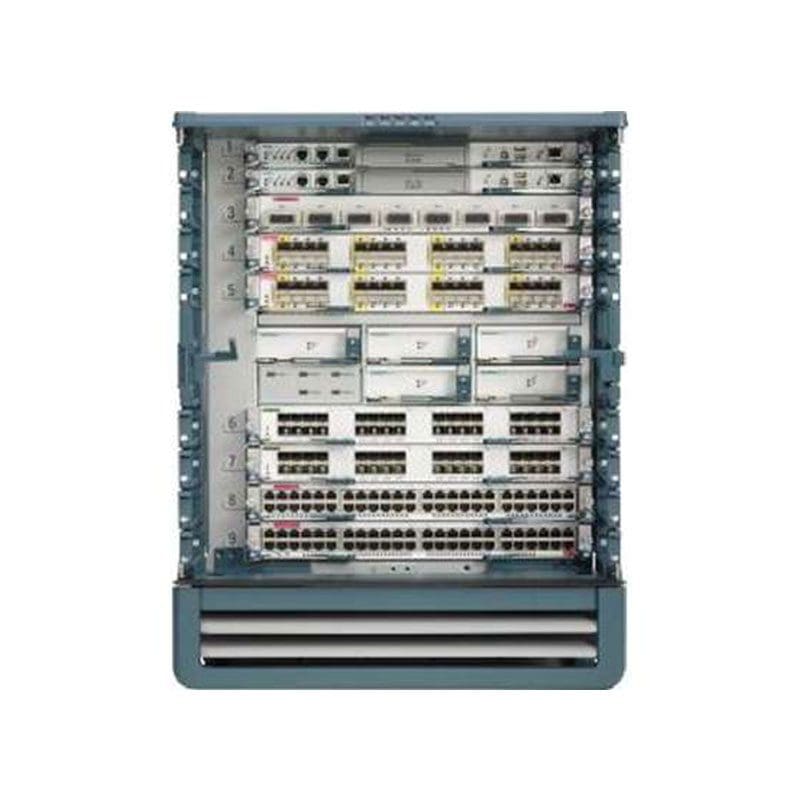

Cisco Nexus 7000 9-Slot Switch
Manufacturer Cisco Systems, Inc
Manufacturer Part Number N7K-C7009-RF
Brand Name Cisco
Product Line Nexus
Product Series 7000
Product Model 7009
Product Name Nexus 7000 9-Slot Switch
Product Condition Refurbished
Product Type Switch Chassis
Technical Information−
Interfaces/Ports
Token Ring Port No
LRE Port No
Port/Expansion Slot Details 9 x Expansion Slot
I/O Expansions
Number of Total Expansion Slots 9
Expansion Slot Type Supervisor Engine, Switch Fabric
Network & Communication
Layer Supported 2
Management & Protocols
Manageable Yes
Management
Web-Based Management
Command Line Interface
SNMP v1, v2c, v3
MIB
Power Description
PoE (RJ-45) Port No
Input Voltage 120 V AC, 230 V AC
Power Source Power Supply
Physical Characteristics
Compatible Rack Unit 14U
Form Factor Rack-mountable
Height 24.5″
Width 17.3″
Depth 24″
Weight (Approximate) 100 lb
Miscellaneous
Package Contents
Nexus 7000 9-Slot Switch
Fans
Certifications & Standards EMC Compliance:
FCC Part 15 (CFR 47) (USA) Class A
ICES-003 (Canada) Class A
EN55022 (Europe) Class A
CISPR22 (International) Class A
AS/NZS CISPR22 (Australia and New Zealand) Class A
VCCI (Japan) Class A
KN22 (Korea) Class A
CNS13438 (Taiwan) Class A
CISPR24
EN55024
EN50082-1
EN61000-3-2
EN61000-3-3
EN61000-6-1
EN300 386
Safety:
UL/CSA/IEC/EN 60950-1
AS/NZS 60950
Environmentally Friendly Yes
Environmental Certification RoHS-5
