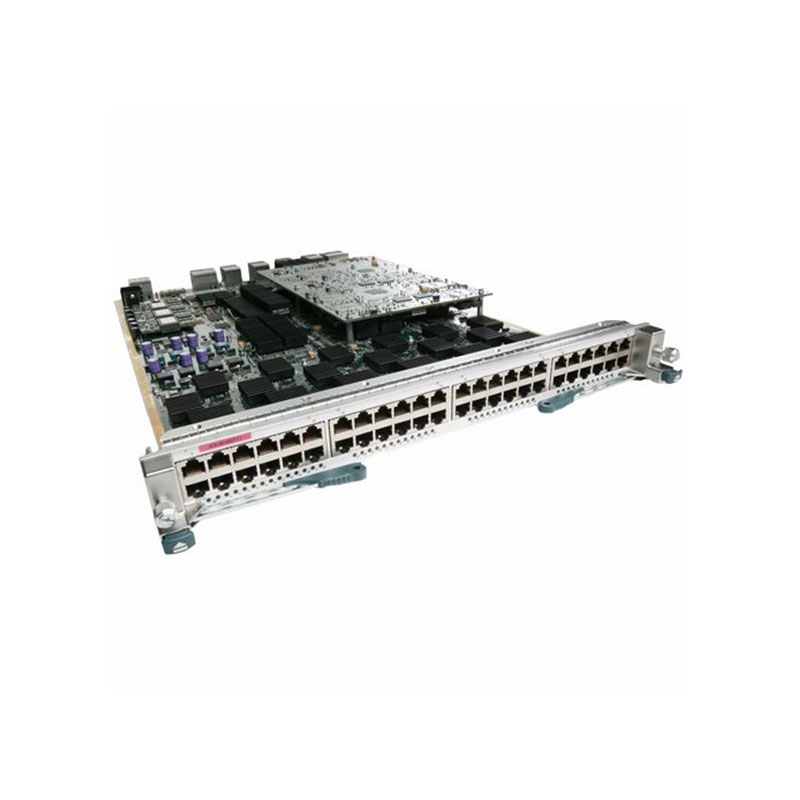

N7K-M148GT-11 Technical Specifications
Cisco 48-Ports Gigabit Ethernet Switching Module
Manufacturer Part Number: N7K-M148GT-11
Brand Name: Cisco
Product Line: Nexus 7000 Series
Product Type: Gigabit Ethernet Switching Module
Total Ports: 48
Gigabit Ethernet Ports: 48 x 10/100/1000Base-T RJ-45
Uplink Ports: Not applicable (module ports only)
Switching Capacity: 256 Gbps (module)
Forwarding Rate: 95.2 Mpps
Layer Support: Layer 2 / Layer 3
MAC Address Table: 32,000 entries
VLAN Support: 4,094 VLANs (IEEE 802.1Q)
Spanning Tree Protocols: STP, RSTP, MSTP
Link Aggregation: IEEE 802.3ad LACP
Flow Control: IEEE 802.3x
Quality of Service (QoS): 8 queues, DSCP, IEEE 802.1p
Security: 802.1X, ACLs, Port Security
Management: CLI, SNMP, RMON
Port Mirroring: Supported
