N9K-C9336C-FX2 Technical Specifications

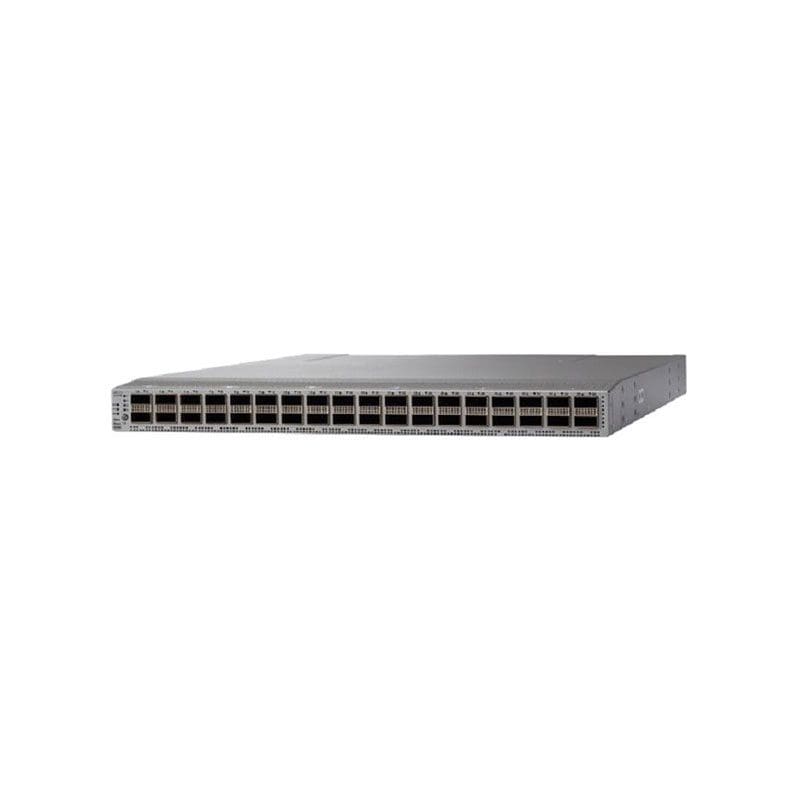

Cisco Nexus 9336C-FX2 Switch 36 ports Managed Rack Mountable
Interface Provided
Connector Type : QSFP28
Qty : 36 QSFP28
Type : 100Gbit/40Gbit LAN
Connector Type : RJ-45
Qty : 1
Type : Management
Connector Type : SFP+
Type : Serial (RS-232)
Type : USB
Networking
Advanced Switching : Layer 3
Features : 3 fan trays, 40MB system buffer, Access Control List (ACL) support, Ethernet Virtual Private Network (EVPN), MACsec support, Multiple Spanning Tree Protocol (MSTP) support, Port exhaust, Power On Auto Provisioning (POAP), Side intake airflow, Source-Specific Multicast (SSM), Spanning Tree Protocol (STP) support, Virtual Extensible LAN (VXLAN), Virtual PortChannel (vPC) technology
Form Factor : Rack-mountable
Manageable : Yes
Ports Qty : 36
Routing Protocol : BGP, ECMP, EIGRP, HSRP, MPLS, MSDP, OSPF, PIM-SM, RIP, RIP-2
Subcategory : Network hubs and switches
Type : Switch
